QUARTER WINDOW GLASS REMOVAL

id091200801700

1.  Remove the following parts:

(1)  Rear scuff plate inner (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Rear seat (See REAR SEAT REMOVAL/INSTALLATION.)

(3)  Sub trunk box (See SUB TRUNK BOX REMOVAL/INSTALLATION.)

(4)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(5)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(6)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(7)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

2.  Set the headliner out of the way.

3.  Apply protective tape along the edge of the body and the quarter window glass.

acxuuw00001577

Not Reusing Quarter Window Glass

Note

•  For the areas of the sealant that are difficult to cut, use the piano wire and follow the procedure under “Reusing Quarter Window Glass”.

1.  Cut out the sealant all around the glass from inside the vehicle using a sealant remover.

acxuuw00001579

Warning

•  Using a razor with bare hands can cause injury. Always wear gloves when using a razor.

2.  Remove the quarter window glass.

Reusing Quarter Window Glass

Warning

•  Using the piano wire with bare hands can cause injury. Always wear gloves when using the piano wire.

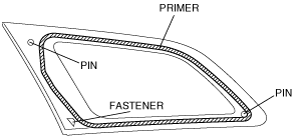

1.  Avoiding the pin on the inside of the vehicle, insert the piano wire which has been cut to sufficient length.

acxuuw00001580

acxuuw00001581

2.  Wind each end of the piano wire around a bar.

Note

•  Use a long sawing action to spread the work over the whole length of the piano wire to prevent it from breaking due to localized heating.

3.  Secure one end of the piano wire, and while pulling the other end, cut the sealant around the quarter window glass.

acxuuw00001578

4.  Pull the quarter window glass outward and detach the pins from the body.

acxuuw00001582

5.  If a pin or spacer is damaged, remove it.

Note

•  Before removing the pins or spacers from the quarter window glass, place alignment marks on the quarter window glass.
