REAR DRAIN HOSE REMOVAL
id091500801500
1. Disconnect the negative battery cable.
2. Partially peel back the seaming welt.
3. Remove the following parts:
- (1) A‐pillar lower trim (See A-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
- (2) A‐pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION.)
- (3) Front scuff plate inner (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
- (4) Rear scuff plate inner (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
- (5) B-pillar lower trim (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
- (6) Front seat belt upper anchor installation bolt (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
- (7) B‐pillar upper trim (See B-PILLAR UPPER TRIM REMOVAL/INSTALLATION.)
- (8) Rear seat (See REAR SEAT REMOVAL/INSTALLATION.)
- (9) Sub trunk box (See SUB TRUNK BOX REMOVAL/INSTALLATION.)
- (10) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
- (11) Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
- (12) C‐pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)
- (13) D‐pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)
- (14) Map light (See MAP LIGHT REMOVAL/INSTALLATION.)
- (15) Sunvisor (See SUNVISOR REMOVAL/INSTALLATION.)
- (16) Assist handle (See ASSIST HANDLE REMOVAL/INSTALLATION.)
- (17) Headliner (See HEADLINER REMOVAL/INSTALLATION.)

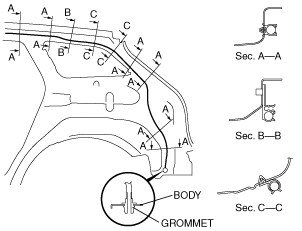

4. Disconnect the rear drain hose from the sunroof frame.
5. Remove the rear drain hose from the clips.
6. Pull the rear drain hose into the room side.
7. Remove the rear drain hose.
