AUTO LIGHT/WIPER CONTROL MODULE REMOVAL/INSTALLATION

id091800809400

1.  Disconnect the negative battery cable.

2.  Remove the meter hood. (See METER HOOD REMOVAL/INSTALLATION.)

3.  Remove the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION.)

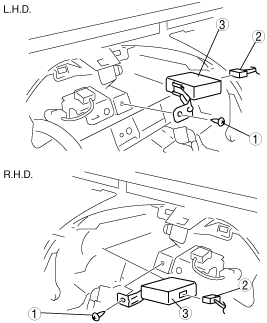

4.  Remove in the order indicated in the table.

acxaaw00001124

1	Screw
2	Connector
3	Auto light/wiper control module

5.  Install in the reverse order of removal.
