DTC P0532:00 [PCM (SKYACTIV-D 2.2)]

id0102j5850200

DTC P0532:00

Refrigerant pressure sensor circuit low input

DETECTION CONDITION

•  With the following conditions met, the A/C sensor voltage is less than 0.07 V for a continuous 5 s.

―  The following DTCs are not detected

•  Constant voltage power supply control system: P0642:00, P0643:00

Diagnostic support note

•  This is a continuous monitor (other).

•  The check engine light does not illuminate.

•  FREEZE FRAME DATA/Snapshot data is available.

•  DTC is stored in the PCM memory.

FAIL-SAFE FUNCTION

•  Inhibits the A/C control.

POSSIBLE CAUSE

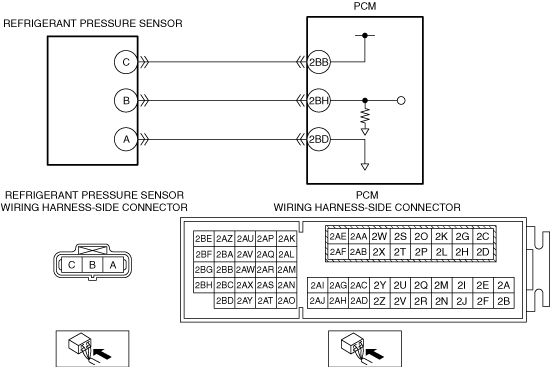

•  Refrigerant pressure sensor connector or terminal malfunction

•  Short to ground in wiring harness between the following terminals:

―  Refrigerant pressure sensor terminal C and PCM terminal 2BB

―  Refrigerant pressure sensor terminal B and PCM terminal 2BH

•  PCM connector or terminal malfunction

•  Short circuit in Refrigerant pressure sensor power supply circuit and ground circuit

•  Open circuit in wiring harness between the following terminals:

―  Refrigerant pressure sensor terminal C and PCM terminal 2BB

―  Refrigerant pressure sensor terminal B and PCM terminal 2BH

•  Refrigerant pressure sensor malfunction

•  PCM malfunction

DTC P0532:00	Refrigerant pressure sensor circuit low input
DETECTION CONDITION	• With the following conditions met, the A/C sensor voltage is less than 0.07 V for a continuous 5 s. ― The following DTCs are not detected • Constant voltage power supply control system: P0642:00, P0643:00 Diagnostic support note • This is a continuous monitor (other). • The check engine light does not illuminate. • FREEZE FRAME DATA/Snapshot data is available. • DTC is stored in the PCM memory.
FAIL-SAFE FUNCTION	• Inhibits the A/C control.
POSSIBLE CAUSE	• Refrigerant pressure sensor connector or terminal malfunction • Short to ground in wiring harness between the following terminals: ― Refrigerant pressure sensor terminal C and PCM terminal 2BB ― Refrigerant pressure sensor terminal B and PCM terminal 2BH • PCM connector or terminal malfunction • Short circuit in Refrigerant pressure sensor power supply circuit and ground circuit • Open circuit in wiring harness between the following terminals: ― Refrigerant pressure sensor terminal C and PCM terminal 2BB ― Refrigerant pressure sensor terminal B and PCM terminal 2BH • Refrigerant pressure sensor malfunction • PCM malfunction

Diagnostic Procedure

Step

Inspection

Results

Action

1

RECORD VEHICLE STATUS WHEN DTC WAS DETECTED TO UTILIZE WITH REPEATABILITY VERIFICATION

Note

•  Recording can be facilitated using the screen capture function of the PC.

•  Record the freeze frame data/snap shot data.

—

Go to the next step.

2

INSPECT REFRIGERANT PRESSURE SENSOR CONNECTOR CONDITION

•  Switch the ignition OFF.

•  Disconnect the Refrigerant pressure sensor connector.

•  Inspect the connector engagement and connection condition, and inspect the terminals for damage, deformation, corrosion, or disconnection.

•  Is the connector normal?

Yes

Go to the next step.

No

Repair or replace the connector, then go to Step 8.

3

INSPECT PCM CONNECTOR CONDITION

•  Disconnect the PCM connector.

•  Inspect the connector engagement and connection condition, and inspect the terminals for damage, deformation, corrosion, or disconnection.

•  Is the connector normal?

Yes

Go to the next step.

No

Repair or replace the connector, then go to Step 8.

4

INSPECT REFRIGERANT PRESSURE SENSOR CIRCUIT FOR SHORT TO GROUND

•  Switch the ignition OFF.

•  Verify that the Refrigerant pressure sensor connector is disconnected.

•  Inspect for continuity between the following terminals (vehicle wiring harness) and ground.

―  Refrigerant pressure sensor terminal C

―  Refrigerant pressure sensor terminal B

•  Is there continuity?

Yes

Refer to the wiring diagram and verify if there is a common connector between the following terminals.

•  Refrigerant pressure sensor terminal C and PCM terminal 2BB

•  Refrigerant pressure sensor terminal B and PCM terminal 2BH

If there is a common connector:

―  Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for short to ground to determine the malfunctioning location.

―  Repair or replace the malfunctioning location.

If there is no common connector:

―  Repair or replace the malfunctioning wiring harness.

Go to Step 8.

No

Go to the next step.

5

INSPECT REFRIGERANT PRESSURE SENSOR SIGNAL CIRCUIT AND GROUND CIRCUIT FOR SHORT CIRCUIT

•  Verify that the Refrigerant pressure sensor connector and the PCM connector are disconnected.

•  Switch the ignition OFF.

•  Inspect for continuity between A/C relay sensor terminals B, A (vehicle wiring harness side).

•  Is there continuity?

Yes

Refer to the wiring diagram and verify if there is a common connector between the following terminals.

•  Refrigerant pressure sensor terminal B and PCM terminal 2BH

•  Refrigerant pressure sensor terminal A and PCM terminal 2BD

If there is a common connector:

―  Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for short circuit to determine the malfunctioning location.

―  Repair or replace the malfunctioning location.

If there is no common connector:

―  Repair or replace the malfunctioning wiring harness.

Go to Step 8.

No

Go to the next step.

6

INSPECT REFRIGERANT PRESSURE SENSOR CIRCUIT FOR OPEN CIRCUIT

•  Verify that the Refrigerant pressure sensor connector and the PCM connector are disconnected.

•  Inspect the wiring harness for continuity between the following terminals (vehicle wiring harness side).

―  Refrigerant pressure sensor terminal C and PCM terminal 2BB

―  Refrigerant pressure sensor terminal B and PCM terminal 2BH

•  Is there continuity?

Yes

Go to the next step.

No

Refer to the wiring diagram and verify if there is a common connector between the following terminals.

•  Refrigerant pressure sensor terminal C and PCM terminal 2BB

•  Refrigerant pressure sensor terminal B and PCM terminal 2BH

If there is a common connector:

―  Inspect the common connector and terminals for corrosion, damage, or disconnection and the common wiring harnesses for an open circuit to determine the malfunctioning location.

―  Repair or replace the malfunctioning location.

If there is no common connector:

―  Repair or replace the wiring harness which has an open circuit.

Go to Step 8.

7

INSPECT REFRIGERANT PRESSURE SENSOR

•  Reconnect all the disconnected connectors.

•  Inspect the Refrigerant pressure sensor.
(See REFRIGERANT PRESSURE SENSOR INSPECTION.)

•  Is the Refrigerant pressure sensor normal?

Yes

Go to the next step.

No

Replace the Refrigerant pressure sensor, then go to the next step.

(See REFRIGERANT PRESSURE SENSOR REMOVAL/INSTALLATION.)

8

VERIFY THAT REPAIRS HAVE BEEN COMPLETED

•  Reconnect all the disconnected connectors.

•  Refer to the [MEMORY CLEARING PROCEDURE] and clear the DTC.
(See CLEARING DTC [PCM (SKYACTIV-D 2.2)].)

•  Start the engine.

•  Turn the A/C on.

•  Display the DTCs using the M-MDS.
(See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)].)

•  Has DTC P0532:00 been recorded?

Yes

Repeat the inspection from Step 1.

•  If the malfunction recurs, replace the PCM, then go to the next step.
(See PCM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

No

Go to the next step.

9

VERIFY OTHER DTCs

•  Has any other DTC or pending code been stored?

Yes

Repair the malfunctioning location according to the applicable DTC troubleshooting.

(See DTC TABLE [PCM (SKYACTIV-D 2.2)].)

No

DTC troubleshooting completed.
