COMPRESSOR BYPASS SOLENOID VALVE INSPECTION [SKYACTIV-D 2.2]

id0113z7265500


Resistance inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the compressor bypass solenoid valve. (See COMPRESSOR BYPASS SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

3.  Measure the resistance between the compressor bypass solenoid valve terminals A and B.

ac8wzw00002221

Compressor bypass solenoid valve resistance (specification)
28—32 ohms [20 °C {68 °F}]
•  If not within the specification, replace the compressor bypass solenoid valve. (See COMPRESSOR BYPASS SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)


Airflow Inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the compressor bypass solenoid valve. (See COMPRESSOR BYPASS SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

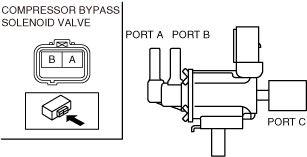

3.  Inspect airflow between the ports under the following conditions.

ac8wzw00002222

Measured condition

Continuity between ports A—B

Continuity between ports B—C

Continuity between ports A—C
When voltage is not applied
No airflow
Airflow detected
No airflow
When voltage is applied
Airflow detected
No airflow
No airflow

•  If not as specified, replace the compressor bypass solenoid valve. (See COMPRESSOR BYPASS SOLENOID VALVE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
