FUEL FILTER REMOVAL/INSTALLATION [SKYACTIV-D 2.2]

id0114z7800000

Replacement Part

Warning

•  Highly pressurized fuel may spray out if the fuel line is cut. Due to the following dangers occurring with a fuel spray, always complete the “Fuel Line Safety Procedure” to prevent the fuel from spraying.

―  Fuel may cause irritation if it comes in contact with skin and eyes.

―  If fuel ignites and causes a fire, it may lead to serious injury or death, and damage to property and facilities.

•  A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before draining fuel, make sure to discharge static electricity by touching the vehicle body.

Caution

•  If parts are exposed to the fuel, their function may be decreased or a fire may occur. Spread a rag to absorb any leaked fuel.

•  If fuel does not pass through the fuel filter, it could cause a fuel system malfunction. Therefore, do not install the fuel hoses (main and return side) in reverse. Always refer to the “AFTER SERVICE PRECAUTION” before installing the fuel hose, and execute the “Fuel Hose Installation Procedure”.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Complete the “BEFORE SERVICE PRECAUTION”. (See BEFORE SERVICE PRECAUTION [SKYACTIV-D 2.2].)

3.  Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

4.  Remove the battery. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

5.  Remove in the order shown in the figure.

6.  Install in the reverse order of removal.

7.  Complete the “AFTER SERVICE PRECAUTION”. (See AFTER SERVICE PRECAUTION [SKYACTIV-D 2.2].)

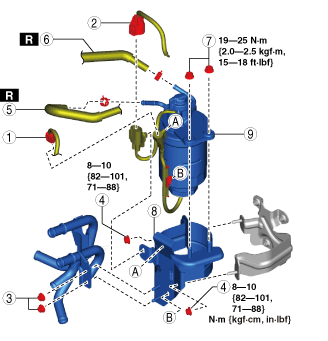

ac8wzw00002689

1	Sedimentor switch connector
2	Fuel warmer connector
3	Front heater pipe installation nut (See HEATER PIPE AND HOSE COMPONENT REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
4	Fuel filter bracket installation nut
5	Fuel main hose No.1 (See Fuel Main Hose No.1 Installation Note.)
6	Fuel main hose No.2 (See Fuel Main Hose No.2 Installation Note.)
7	Fuel filter installation nut
8	Fuel filter bracket
9	Fuel filter

Fuel Main Hose No.2 Installation Note

1.  Connect the fuel main hose No.2 as shown in the figure.

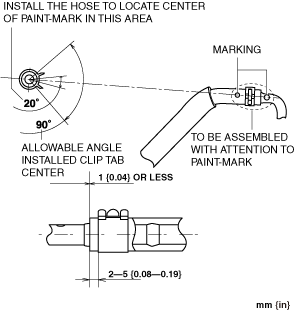

ac8wzw00002690

Fuel Main Hose No.1 Installation Note

1.  Connect the fuel main hose No.1 as shown in the figure.

ac8wzw00002691
