HEATER PIPE AND HOSE COMPONENT REMOVAL/INSTALLATION [SKYACTIV-D 2.2]


id071100802734

Replacement Part

Clip

Quantity: 1

Location of use: Front heater hose No.3
Clip

Quantity: 1

Location of use: Front heater hose No.4
Clip

Quantity: 2

Location of use: Front heater hose No.5
Clip

Quantity: 2

Location of use: Front heater hose No.6
Clip

Quantity: 1

Location of use: Rear heater hose No.1
Clip

Quantity: 1

Location of use: Rear heater hose No.2

Note
•  The heater pipe and hose component consists of the following parts.

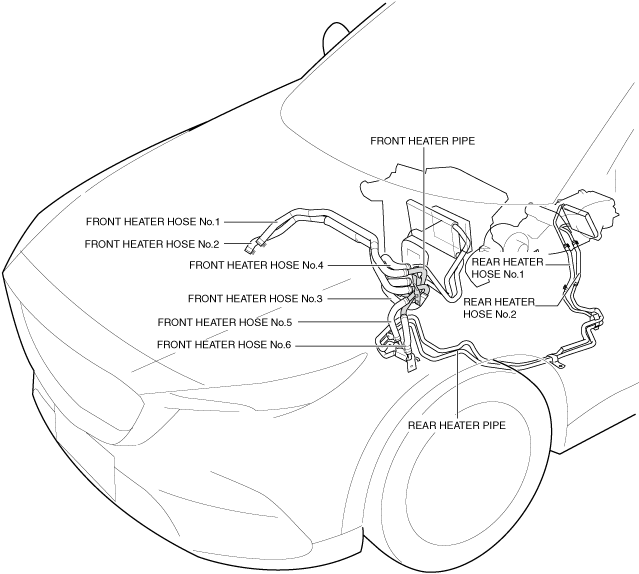

ac8wzw00000158

Front heater hose No.1, No.2

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-D 2.2].)

3.  Remove the following parts:

(1)  Engine cover (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
(2)  Front under cover No.2 (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
(3)  Battery (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
(4)  Battery tray (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
(5)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)
(6)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)
(7)  Windshield wiper motor and link (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION.)
(8)  Keyless beeper (with advanced keyless entry system) (See KEYLESS BEEPER REMOVAL/INSTALLATION.)
(9)  Cowl panel (See COWL PANEL REMOVAL/INSTALLATION.)

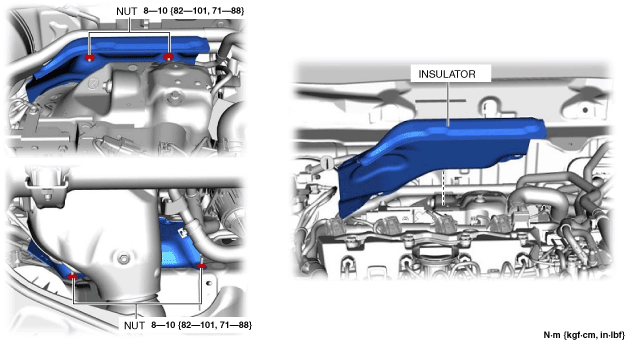

4.  Remove the nuts.

ac8wzw00000159

5.  Remove the insulator.

6.  Remove the front heater hose No.1.

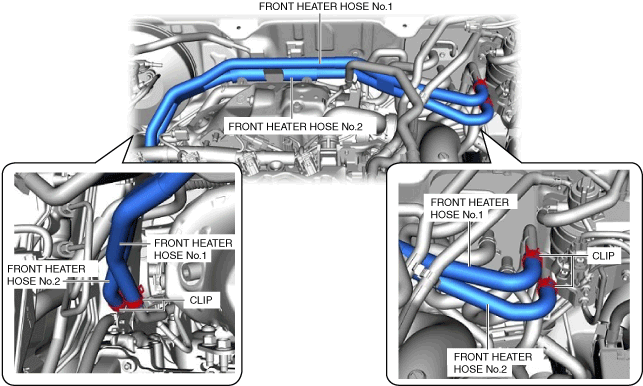

ac8wzw00000160

7.  Remove the front heater hose No.2.

8.  Install in the reverse order of the removal.

9.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-D 2.2].)


Front heater hose No.3, No.4

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-D 2.2].)

3.  Remove the following parts:

(1)  Engine cover (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
(2)  Battery (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
(3)  Battery tray (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

4.  Disconnect the front heater hose No.1.

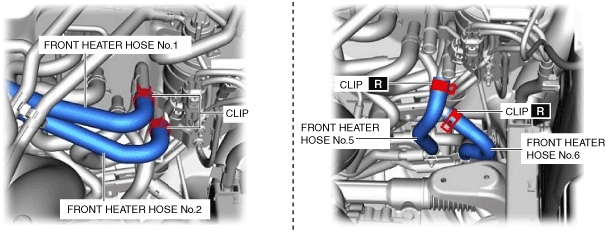

ac8wzw00000161

5.  Disconnect the front heater hose No.2.

6.  Disconnect the front heater hose No.5.

7.  Disconnect the front heater hose No.6.

8.  Remove the nuts.

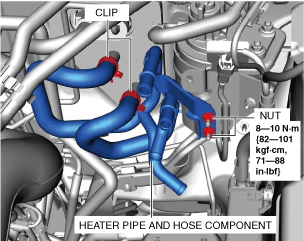

ac8wzw00000162

9.  Remove the heater pipe and hose component.

10.  Remove the front heater hose No.4.

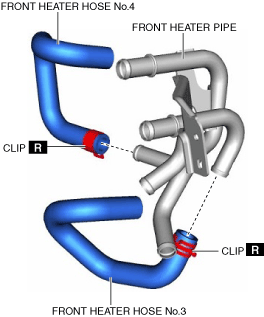

ac8wzw00000163

11.  Remove the front heater hose No.3.

12.  Install in the reverse order of the removal.

13.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-D 2.2].)


Front heater hose No.5, No.6

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-D 2.2].)

3.  Remove the following parts:

(1)  Engine cover (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
(2)  Battery (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
(3)  Battery tray (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

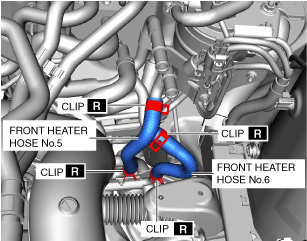

4.  Remove the front heater hose No.5.

ac8wzw00000164

5.  Remove the front heater hose No.6.

6.  Install in the reverse order of the removal.

7.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-D 2.2].)


Front heater pipe

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-D 2.2].)

3.  Remove the following parts:

(1)  Engine cover (See ENGINE COVER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
(2)  Battery (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
(3)  Battery tray (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

4.  Disconnect the front heater hose No.1.

ac8wzw00000161

5.  Disconnect the front heater hose No.2.

6.  Disconnect the front heater hose No.5.

7.  Disconnect the front heater hose No.6.

8.  Remove the nuts.

ac8wzw00000162

9.  Remove the heater pipe and hose component.

10.  Remove the front heater hose No.4.

ac8wzw00000163

11.  Remove the front heater hose No.3.

12.  Remove the front heater pipe.

13.  Install in the reverse order of the removal.

14.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-D 2.2].)


Rear heater hose No.1, No.2

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-D 2.2].)

3.  Remove the following parts:

(1)  Floor under cover No.2 (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)
(2)  Floor under cover No.1 (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)
(3)  Tunnel member

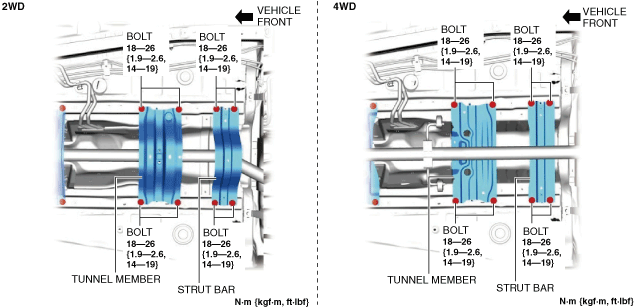

ac8wzw00000165
(4)  Strut bar
(5)  Insulator (middle) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

4.  Remove the rear heater hose No.1.

ac9uuw00007558

5.  Remove the rear heater hose No.2.

6.  Install in the reverse order of the removal.

7.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-D 2.2].)


Rear heater pipe

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-D 2.2].)

3.  Remove the following parts:

(1)  Battery (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
(2)  Battery tray (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
(3)  Front under cover No.2 (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)
(4)  Floor under cover No.2 (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)
(5)  Floor under cover No.1 (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)
(6)  Insulator (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
(7)  Brace bar

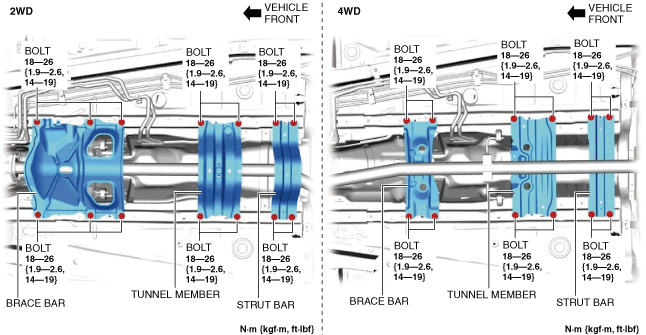

ac8wzw00000166
(8)  Tunnel member
(9)  Strut bar
(10)  Insulator (middle) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

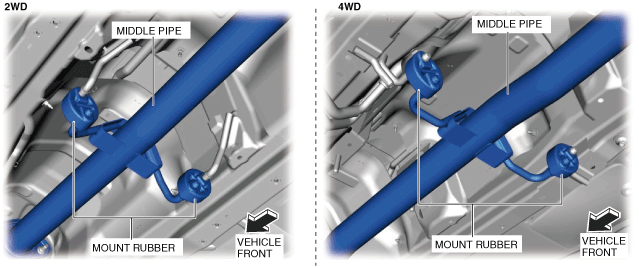

4.  Remove the middle pipe from the mount rubber.

ac8wzw00000167

5.  Disconnect the middle pipe from the main silencer. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

6.  Suspend the middle pipe using a cable as shown in the figure.

ac8wzw00000168

7.  Remove the propeller shaft. (4WD) (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

8.  Remove the Insulator (front) (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

9.  Disconnect the front heater hose No.5.

ac8wzw00000169

10.  Disconnect the front heater hose No.6.

11.  Disconnect the rear heater hose No.1.

12.  Disconnect the rear heater hose No.2.

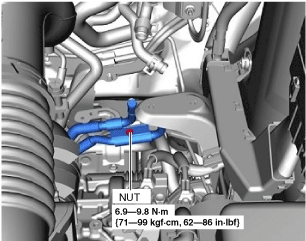

13.  Remove the nut.

ac8wzw00000170

14.  Remove the bolt.

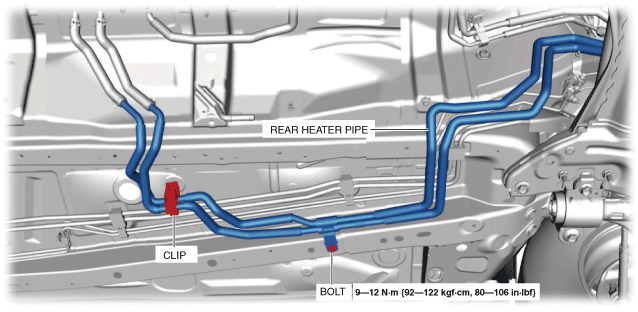

ac8wzw00000171

15.  Remove the rear heater pipe from the clip.

16.  Remove the rear heater pipe.

17.  Install in the reverse order of the removal.

18.  Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-D 2.2].)
