FUEL PUMP CONTROL MODULE REMOVAL/INSTALLATION [SKYACTIV-G 2.5]

id0114za175000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the trunk side trim (LH). (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

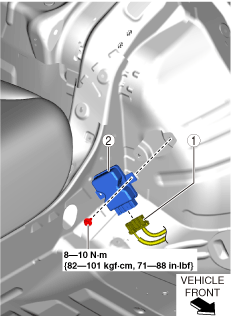

3.  Remove in the order indicated in the table.

ac8wzw00003604

1	Fuel pump control module connector
2	Fuel pump control module

4.  Install in the reverse order of removal.
