BEFORE SERVICE PRECAUTION [SKYACTIV-G 2.5]

id0114za802000

Warning

•  Fuel vapor is hazardous. It can very easily ignite, causing serious injury and damage. Always keep sparks and flames away from fuel.

•  Highly pressurized fuel may spray out if the fuel line is cut. Due to the following dangers occurring with a fuel spray, always complete the “Fuel Line Safety Procedure” to prevent the fuel from spraying.

―  Fuel may cause irritation if it comes in contact with skin and eyes.

―  If fuel ignites and causes a fire, it may lead to serious injury or death, and damage to property and facilities.

•  A person charged with static electricity could cause a fire or explosion, resulting in death or serious injury. Before performing work on the fuel system, discharge static electricity by touching the vehicle body.

Caution

•  If foreign matter enters the fuel passage, it could cause serious damage to the fuel injection related parts. When removing/installing the fuel injection related parts, pay close attention so that foreign matter does not enter the fuel passage.

Fuel Line Safety Procedure

1.  Turn the steering wheel to the right to a position allowing removal of the relay box (LH).

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the fuel-filler cap to release the pressure inside the fuel tank.

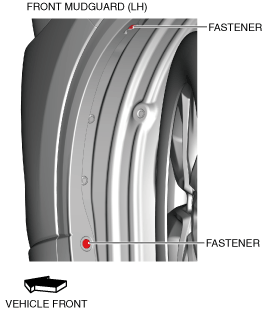

4.  Remove the fasteners.

ac5uuw00007035

5.  Remove the clips shown in the figure and detach the front over fender (LH) from the front bumper.

ac5uuw00007036

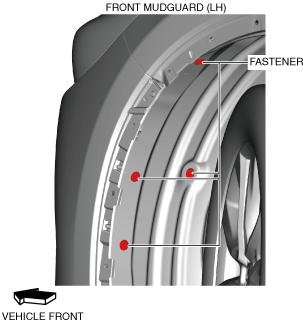

6.  Remove the fasteners.

ac5uuw00007037

7.  Partially peel back the front mud guard (LH) to a position allowing removal of the relay box (LH).

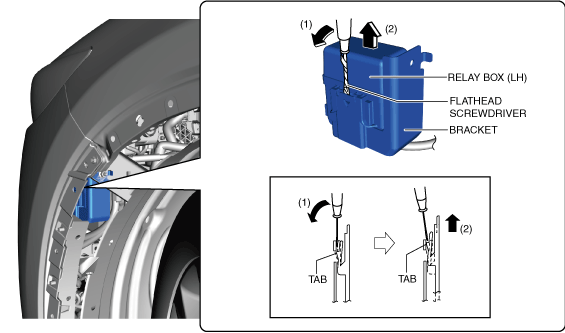

8.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure.

ac5wzw00010480

9.  Move the tape-wrapped flathead screwdriver in the direction of arrow (1) shown in the figure and lift the relay box (LH) in the direction of arrow (2) to detach the tab of the relay box (LH) from the bracket.

10.  Remove the fuel pump relay.

ac5uuw00007039

11.  Disconnect the high pressure fuel pump connector.

12.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

13.  Start the engine.

14.  After the engine stalls, crank the engine 2—3 times.

15.  Switch the ignition to off.

16.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

17.  Install the fuel pump relay.

18.  Insert the front mudguard (LH). (See MUDGUARD REMOVAL/INSTALLATION.)

19.  Install the clips shown in the figure and attach the front over fender (LH) to the front bumper.

ac5uuw00007036

20.  Insert the fasteners.

ac5uuw00007035

21.  Connect the high pressure fuel pump connector.
