EGR COOLER INSPECTION [SKYACTIV-D 2.2]

id0116e1099800

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the EGR cooler. (See EGR COOLER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

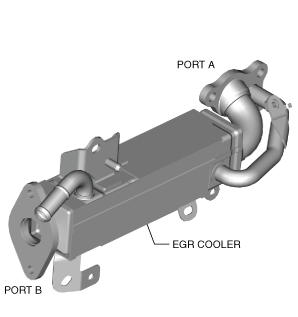

3.  Verify that there is airflow from port B when pressure is applied from port A.

ac8wzw00002747

•  If there is no airflow, replace the EGR cooler. (See EGR COOLER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
