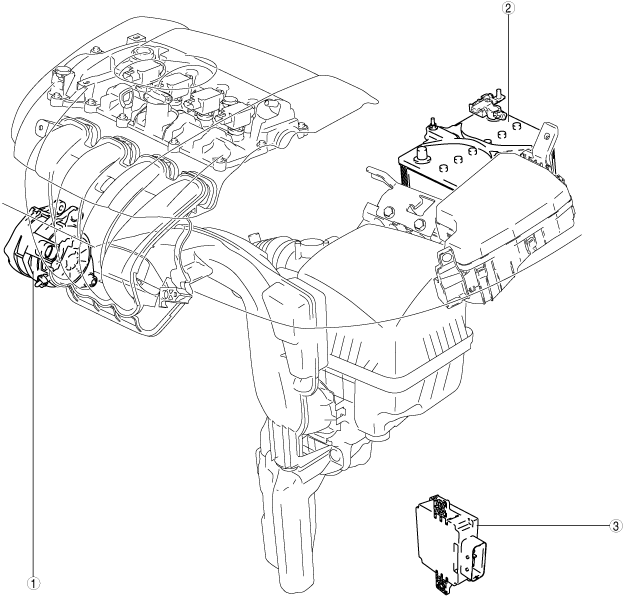

CHARGING SYSTEM LOCATION INDEX [SKYACTIV-G 2.5]

id0117008001h8

ac8wzw00003656

1	Generator (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See GENERATOR INSPECTION [SKYACTIV-G 2.5].) (See GENERATOR DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.5].)
2	Battery (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See BATTERY INSPECTION.) (See BATTERY RECHARGING.) (See BATTERY CONDITION INITIALIZATION SETTING (i-stop SETTING).)
3	DC-DC converter (See DC-DC CONVERTER REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See DC-DC CONVERTER INSPECTION [SKYACTIV-G 2.5].)
