CRUISE CONTROL SWITCH INSPECTION [SKYACTIV-G 2.5]


id0120e6800100

1.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

3.  Disconnect the clock spring connector (part wiring harness-side).

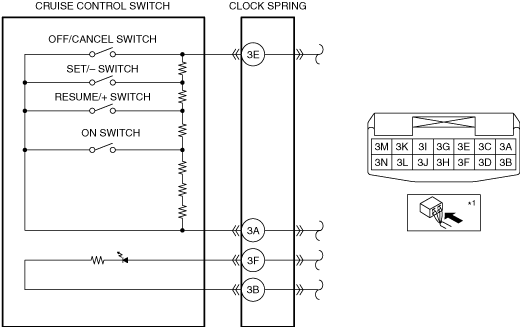

4.  Measure the resistance between clock spring terminals 3E and 3A (part wiring harness-side) using a tester.

ac8wzw00003856

*1  :Part wiring harness-side
•  If as specified, go to the next step.
•  If not as specified, replace the steering switch. (See STEERING SWITCH REMOVAL/INSTALLATION.)

Switch condition

Resistance (ohm)

OFF/CANCEL switch held at on
Continuity
SET/− switch held at on
Approx. 84.5
RESUME/+ switch held at on
Approx. 189.5
ON switch held at on
Approx. 326.5
Neutral
Approx. 3,311.5

5.  Apply battery positive voltage to clock spring terminal 3F (part wiring harness-side), and terminal 3B (part wiring harness-side) to ground.

am3uuw00012307

6.  Verify that the LED in the steering switch turns on.

•  If the LED does not illuminate, replace the steering switch. (See STEERING SWITCH REMOVAL/INSTALLATION.)
