MASTER CYLINDER REMOVAL/INSTALLATION [L.H.D.]

id041100801350

Replacement part

Nut

Quantity: 2

Location of use: Cylinder component
Set bolt

Quantity: 1

Location of use: Brake fluid reserve tank
Bushing

Quantity: 2

Location of use: Cylinder component
O-ring

Quantity: 1

Location of use: Cylinder component
−
−

Oil and chemical type

Brake fluid

Type: SAE J1703 or FMVSS116 DOT-3

Caution
•  Be careful not to let brake fluid get on the paint surface. Otherwise, it could cause paint peeling. If brake fluid gets on the paint surface, wash and flush it off completely with water immediately.
•  When removing/installing the master cylinder, be careful not to spill brake fluid on the power brake unit vacuum sensor. Otherwise, brake fluid may get on the power brake unit vacuum sensor and damage it.
Note
•  Tighten the brake pipe flare nut using a commercially available flare nut wrench.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the battery. (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)

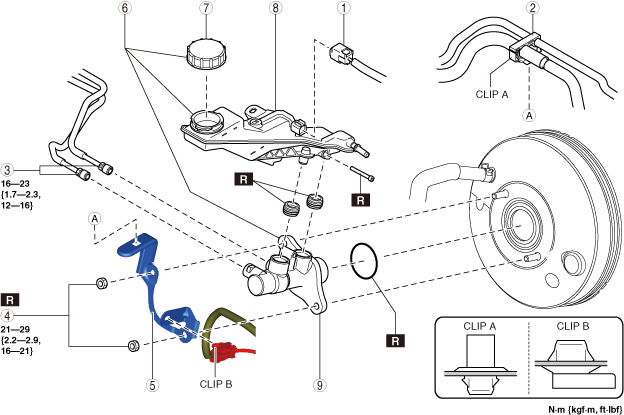

3.  Remove in the order shown in the figure.

4.  Install in the reverse order of removal.

5.  After installation, add brake fluid and perform the air bleeding/fluid leakage inspection. (See BRAKE FLUID AIR BLEEDING.)

ac8wzw00003861

1
Brake fluid level sensor connector
2
Hose holder
3
Brake pipe
4
Nut
5
Bracket
6
Master cylinder
7
Cap
8
Brake fluid reserve tank
9
Cylinder component
