PARKING BRAKE SYSTEM LOCATION INDEX

id041200800100

ac8wzw00003706

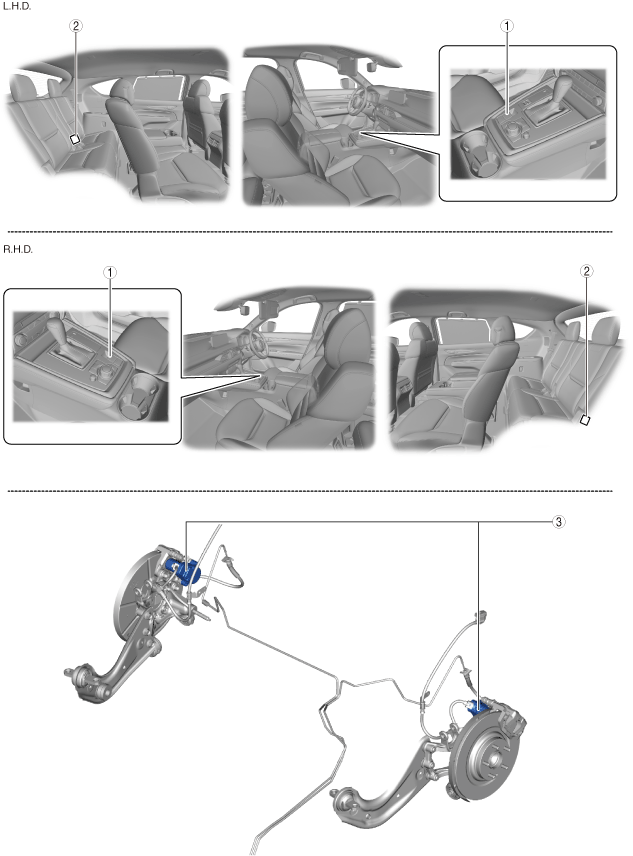

1	Electric parking brake switch (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION.) (See ELECTRIC PARKING BRAKE SWITCH INSPECTION.)
2	Electric parking brake control module (See ELECTRIC PARKING BRAKE CONTROL MODULE REMOVAL/INSTALLATION.) (See ELECTRIC PARKING BRAKE CONTROL MODULE INSPECTION.) (See MAINTENANCE MODE.)
3	Electric parking brake motor gear unit (See ELECTRIC PARKING BRAKE MOTOR GEAR UNIT REMOVAL/INSTALLATION.) (See ELECTRIC PARKING BRAKE MOTOR GEAR UNIT INSPECTION.) (See ELECTRIC PARKING BRAKE FORCED RELEASE PROCEDURE.)
