HEATED STEERING WHEEL CONTROL UNIT REMOVAL/INSTALLATION

id061600000600

Warning

•  Handling the driver-side air bag module improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the driver-side air bag module. (See AIR BAG SYSTEM SERVICE WARNINGS [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

Note

•  When removing the driver-side air bag module, it is necessary to rotate the steering wheel. If the ignition has been switched off with the driver's door closed, the steering wheel will be locked. Perform the procedure from Steps 1-3 so that the steering wheel will not be locked.

1.  Switch the ignition ON (engine off or on).

2.  Open the driver's door.

3.  Switch the ignition off.

4.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

5.  Remove the following parts.

(1)  Driver-side air bag module (See DRIVER-SIDE AIR BAG MODULE REMOVAL [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE REMOVAL [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See DRIVER-SIDE AIR BAG MODULE INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

(2)  Steering switch (See STEERING SWITCH REMOVAL/INSTALLATION.)

(3)  Steering wheel bezel (See STEERING WHEEL BEZEL REMOVAL/INSTALLATION.)

(4)  Steering wheel (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

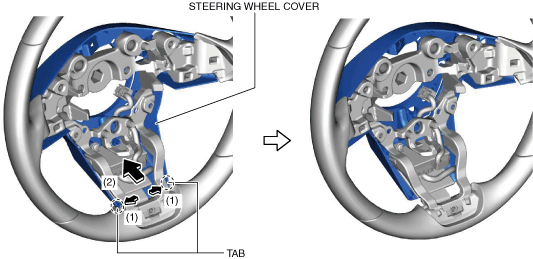

6.  While pressing the tabs of the steering wheel cover in the directions of arrows (1) shown in the figure, press the steering wheel cover in the direction of arrow (2) and detach the tabs of the steering wheel cover from the steering wheel.

ac8wzw00001537

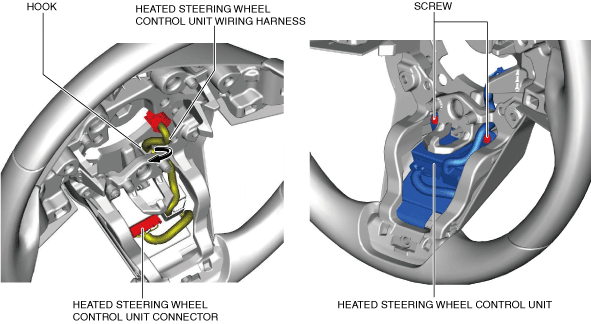

7.  Disconnect the heated steering wheel control unit connector.

ac8wzw00004074

8.  Remove the heated steering wheel control unit screws.

9.  Remove the heated steering wheel control unit wiring harness from the steering wheel cover hook.

10.  Remove the heated steering wheel control unit.

11.  Install in the reverse order of removal.
