MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.5]

id071100006338


Magnetic Clutch is Disassembled/Assembled with A/C Compressor Removed from Vehicle

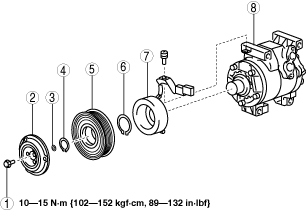

1.  Disassemble in the order indicated in the table.

ac9uuw00007519

1
Bolt
(See Bolt removal/installation note.)
2
Pressure plate
3
Shim
4
Snap ring
5
A/C compressor pulley
6
Snap ring
7
Stator
8
A/C compressor body

2.  Assemble in the reverse order of disassembly.

3.  Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-G 2.5].)


Bolt removal/installation note

1.  When removing or installing the bolt, lock the A/C compressor pulley against rotation using the following procedure.

Caution
•  When connecting the positive battery cable to the magnetic clutch connector, use a cable with a female terminal of the correct size. Otherwise, load will be applied to the terminal, resulting in deformation or damage, and poor contact. In addition, the positive battery cable could disconnect from the connector resulting in a short circuit.
(1)  Apply battery positive voltage to the magnetic clutch terminal and connect the A/C compressor body to the ground.
ac5wzw00001840
(2)  Wrap the drive belt, which is no longer of use, tightly around the A/C compressor pulley.
ac5wzw00001841
(3)  Hold the drive belt in place with pliers.
(4)  Remove/installation the bolt.
Tightening torque
10—15 N·m {102 —152 kgf·cm, 89 — 132 in·lbf}

2.  When installing a new A/C compressor body, replace the recommended bolt.


Magnetic Clutch is Disassembled/Assembled with A/C Compressor Equipped to Vehicle

Warning
•  If A/C compressor operation is performed, do not start the engine. Otherwise, the drive belt could get caught and cause an accident.

1.  Remove the following parts:

(1)  Wheel and tire (RF) (See WHEEL AND TIRE REMOVAL/INSTALLATION.)
(2)  Front splash shield No.1 (RH) (See SPLASH SHIELD REMOVAL/INSTALLATION.)
(3)  Front under cover No.2 (See FRONT UNDER COVER No.2 REMOVAL/INSTALLATION.)

2.  Remove the fasteners.

ac8ccw00000192

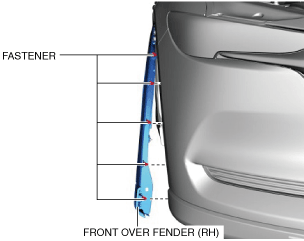

3.  Remove the fasteners.

ac8ccw00000193

4.  Bend back the front side of the front over fender (RH) as shown in the figure.

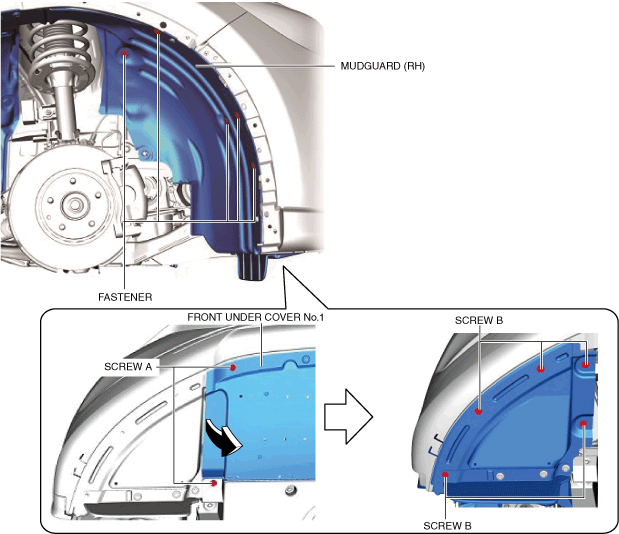

5.  Remove the fasteners.

ac8ccw00000194

6.  Remove the screws A.

7.  Bend back the front under cover No.1 as shown in the figure.

8.  Remove the screws B.

9.  Bend back the front side of the mudguard (RH) as shown in the figure.

ac9uuw00007523

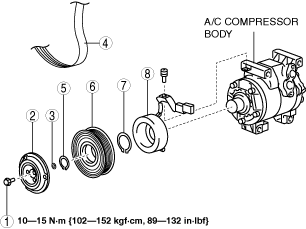

10.  Disassemble in the order indicated in the table.

ac9uuw00007524

1
Bolt
(See Bolt removal/installation note.)
2
Pressure plate
3
Shim
4
Drive belt
(See DRIVE BELT REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
5
Snap ring
6
A/C compressor pulley
7
Snap ring
8
Stator
(See Stator removal/installation note.)

11.  Assemble in the reverse order of disassembly.

12.  Adjust the magnetic clutch clearance. (See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-G 2.5].)


Bolt removal/installation note

1.  When removing or installing the bolt, lock the A/C compressor pulley against rotation using the following procedure.

(1)  Connect the M-MDS to the DLC-2.
(2)  After the vehicle is identified, select the following items from the initialization screen of the M-MDS.
1.  Select “DataLogger”.
2.  Select “Modules”.
3.  Select “PCM”.
4.  Select “ACCS”.
(3)  Turn the A/C relay on using the “ACCS” simulation function.

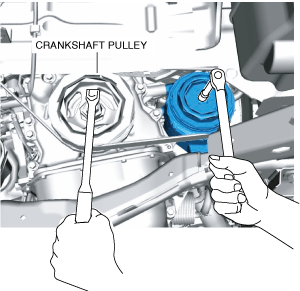

2.  Secure the crankshaft pulley.

ac9uuw00007525

Note
•  If the crankshaft pulley is rotated with the magnetic clutch turned on, the magnetic clutch turns off. If the bolt is rotated, fix it so that the crankshaft pulley does not rotate.

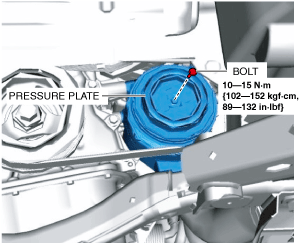

3.  Remove the bolt with the pressure plate secured.

ac9uuw00007526

ac9uuw00008165
Note
•  When turning the bolt, if the pulley slips with little friction on the drive belt and A/C compressor pulley, attach a wrench to the hexagon of the drive belt auto tensioner, slowly turn the wrench in the direction shown in the figure, and increase the tension on the drive belt.

4.  Turn the A/C relay off using the “ACCS” simulation function.


Stator removal/installation note

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

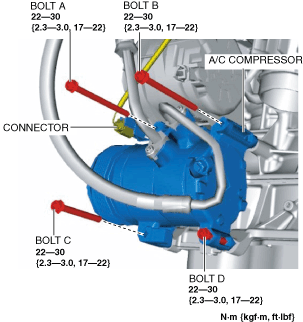

2.  Disconnect the magnetic clutch connector.

ac9uuw00008166

3.  Remove the bolts A, B and C.

4.  Loose bolt D approx. 5 mm {0.2 in}.

5.  Tilt the A/C compressor centered around bolt D.

ac9uuw00007529

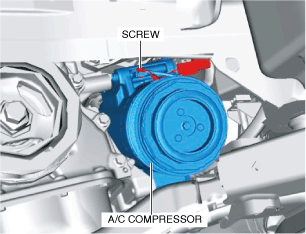

6.  Remove the screw.

ac9uuw00007530
