FRONT HEAT DUCT REMOVAL/INSTALLATION

id071100010400

Driver’s side

1.  Remove the following parts:

(1)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(2)  Driver-side side wall (See SIDE WALL REMOVAL/INSTALLATION.)

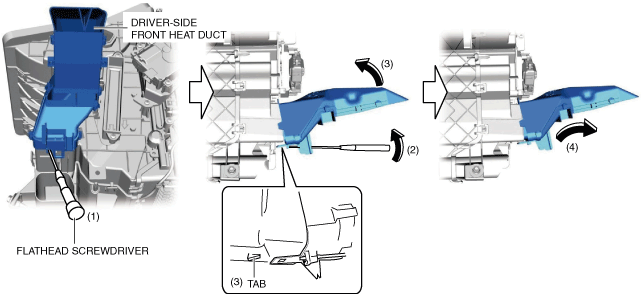

2.  Insert a flathead screwdriver in the position shown in the figure (1), lift it up in the direction of the arrow (2).

ac8wzw00000121

3.  Detach the tab while lifting up the driver-side front heat duct in the direction of the arrow (3).

4.  Remove the driver-side front heat duct (4).

5.  Install in the reverse order of removal.

Passenger’s side

1.  Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

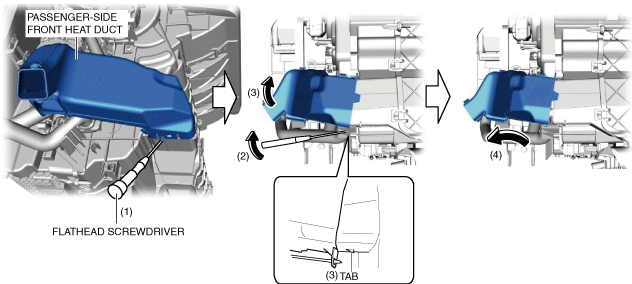

2.  Insert a flathead screwdriver in the position shown in the figure (1), lift it up in the direction of the arrow (2).

ac8wzw00000122

3.  Detach the tab while lifting up the passenger-side front heat duct in the direction of the arrow (3).

4.  Remove the passenger-side front heat duct (4).

5.  Install in the reverse order of removal.
