AMBIENT TEMPERATURE SENSOR REMOVAL/INSTALLATION

id074000803200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

4.  Disconnect the connector.

ac8wzw00000197

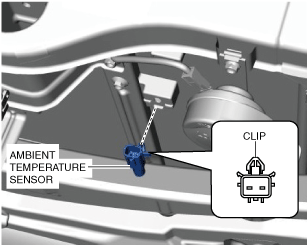

5.  Remove the clip.

ac8wzw00000198

6.  Remove the ambient temperature sensor.

7.  Install in the reverse order of removal.

8.  Perform the 360°view monitor system aiming. (With 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)
