PRESSURE SENSOR REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM]

id0810b1810100

Warning

•  Handling the pressure sensor improperly can accidentally operate (deploy) the air bag module, which may seriously injure you. Read the air bag system service warnings and cautions before handling the pressure sensor. (See AIR BAG SYSTEM SERVICE WARNINGS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].) (See AIR BAG SYSTEM SERVICE CAUTIONS [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

1.  Switch the ignition off.

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

4.  Disconnect the pressure sensor connector. (See Pressure Sensor Connector Disconnect Note.)

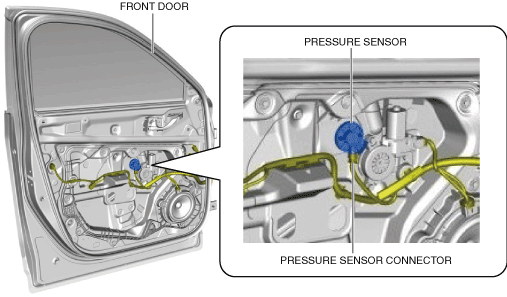

ac5uuw00005668

5.  Remove the front door module panel. (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION.)

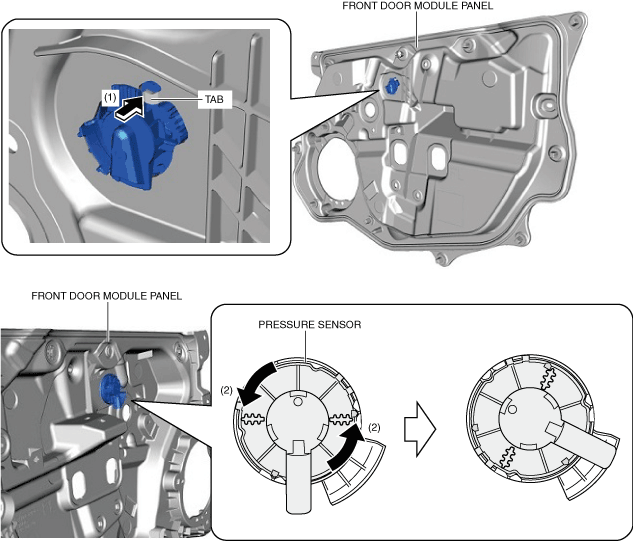

6.  While pressing the tab of the front door module panel in the direction of arrow (1), rotate the pressure sensor in the direction of arrows (2).

ac5uuw00005669

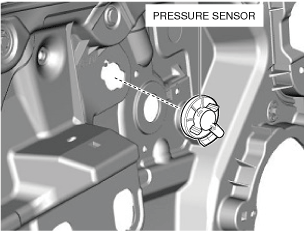

7.  Remove the pressure sensor.

ac5uuw00005670

8.  Install in the reverse order of removal.

9.  Switch the ignition ON (engine off or on).

10.  Verify that the air bag/seat belt pre-tensioner system warning light illuminates for approx. 6 s and turns off.

•  If the air bag/seat belt pre-tensioner system warning light does not operate normally, refer to the on-board diagnostic system (air bag system) and perform inspection of the system. (See FLOWCHART [SAS CONTROL MODULE (TWO-STEP DEPLOYMENT CONTROL SYSTEM)].)

Pressure Sensor Connector Disconnect Note

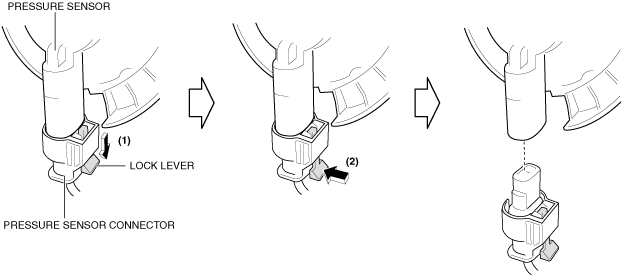

1.  Pull out the pressure sensor connector lock lever in the direction of arrow (1) shown in the figure.

ac5uuw00005671

2.  While pressing the area indicated by arrow (2) shown in the figure, disconnect the pressure sensor connector.
