FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION

id091100520200

1.  Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

(2)  Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

(3)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

Note

•  After removing the front door trim, secure the inner handle using screws so that the procedure is performed smoothly.

4.  Disconnect the connectors.

ac8wzw00003493

5.  Remove the bolt.

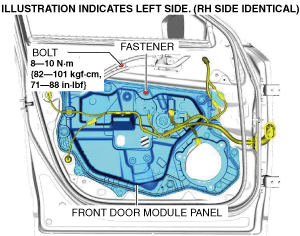

ac8wzw00004096

6.  Remove the fastener.

7.  Remove the screws.

ac8wzw00004097

8.  Move the front door module panel in the direction of the arrow shown in the figure and remove the pin from the front door inner panel.

Caution

•  If the protector does not come out easily from the front door inner panel, pulling the front door module panel forcibly may cause the front door module panel to deform. If the protector does not come out easily, remove the front door module panel while gradually removing the applied protector.

•  If the front power window regulator contacts the front door inner panel during the front door module panel removal, the coating film on the front door inner panel may get scratched, or the front door module panel and front power window regulator could be damaged. Remove the front door module panel while verifying that the front power window regulator and the front door inner panel do not contact each other.

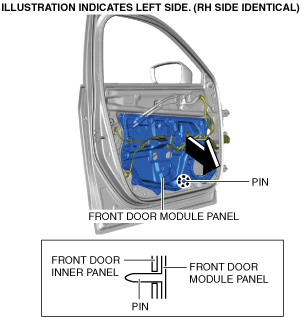

ac8wzw00002188

9.  Remove the wiring harness clips.

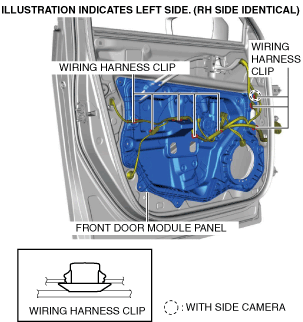

ac8wzw00002189

10.  Move the front door module panel in the direction of the arrow shown in the figure so that the upper part of the front power window regulator does not contact the front door inner panel, and remove the front door module panel and the front power window regulator as a single unit.

ac8wzw00004098

11.  Remove the pressure sensor. (with pressure sensor) (See PRESSURE SENSOR REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)

12.  Remove the front power window motor. (See FRONT POWER WINDOW MOTOR REMOVAL/INSTALLATION.)

13.  Remove the front power window regulator. (See FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION.)

14.  When remove the pad, perform the following procedure. (with pad)

15.  Remove the bolt.

ac8wzw00003494

16.  Remove the fastener.

17.  Remove the pad.

18.  Install in the reverse order of removal.
