SEAT BELT LOCATION INDEX

id081100804200

Structural View

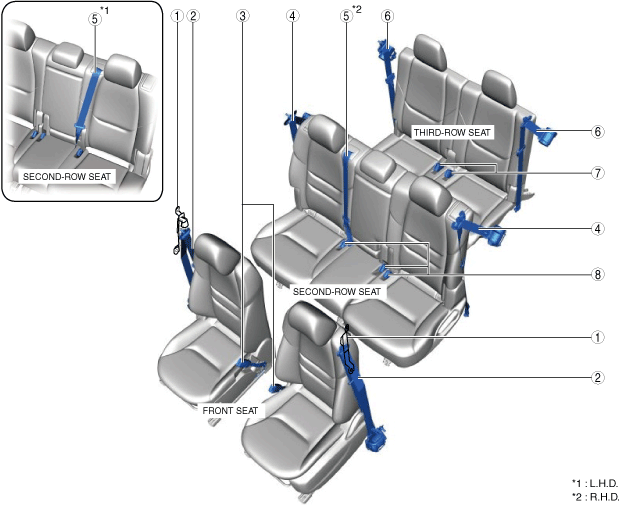

Bench type second-row seat

ac8wzw00000272

1	Adjuster anchor (See ADJUSTER ANCHOR REMOVAL/INSTALLATION.)
2	Front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.) (See SEAT BELT INSPECTION.)
3	Front buckle (See FRONT BUCKLE REMOVAL/INSTALLATION.) (See BUCKLE SWITCH INSPECTION.)
4	Second-row seat belt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.) (See SEAT BELT INSPECTION.)
5	Second-row center seat belt (See SECOND-ROW CENTER SEAT BELT REMOVAL/INSTALLATION.) (See SEAT BELT INSPECTION.)
6	Third-row seat belt (See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION.) (See SEAT BELT INSPECTION.)
7	Third-row buckle (See THIRD-ROW BUCKLE REMOVAL/INSTALLATION.) (See BUCKLE SWITCH INSPECTION.)
8	Second-row buckle (See SECOND-ROW BUCKLE REMOVAL/INSTALLATION.) (See BUCKLE SWITCH INSPECTION.)

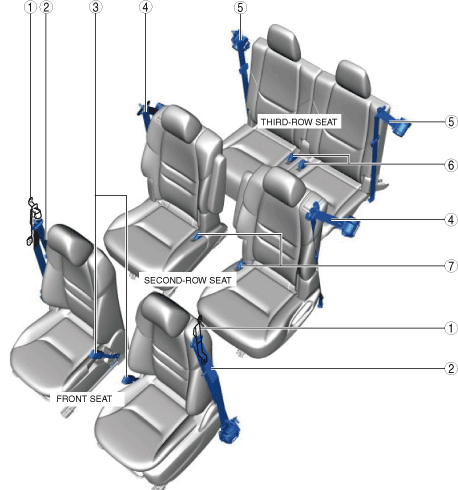

Separate type second-row seat

ac8wzw00003356

1	Adjuster anchor (See ADJUSTER ANCHOR REMOVAL/INSTALLATION.)
2	Front seat belt (See FRONT SEAT BELT REMOVAL/INSTALLATION.) (See SEAT BELT INSPECTION.)
3	Front buckle (See FRONT BUCKLE REMOVAL/INSTALLATION.) (See BUCKLE SWITCH INSPECTION.)
4	Second-row seat belt (See SECOND-ROW SEAT BELT REMOVAL/INSTALLATION.) (See SEAT BELT INSPECTION.)
5	Third-row seat belt (See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION.) (See SEAT BELT INSPECTION.)
6	Third-row buckle (See THIRD-ROW BUCKLE REMOVAL/INSTALLATION.) (See BUCKLE SWITCH INSPECTION.)
7	Second-row buckle (See SECOND-ROW BUCKLE REMOVAL/INSTALLATION.) (See BUCKLE SWITCH INSPECTION.)
