SECOND-ROW BUCKLE REMOVAL/INSTALLATION

id081100802100

Bench Type Second-row Seat

Note

•  The following procedures refer to the removal/installation for R.H.D. vehicles. Removal/installation for L.H.D. vehicles is symmetrical in relation to the removal/installation for R.H.D. vehicles.

Center

1.  Switch the ignition to off.

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the second-row seat (driver’s side). (See SECOND-ROW SEAT REMOVAL/INSTALLATION.)

4.  Disconnect the connector.

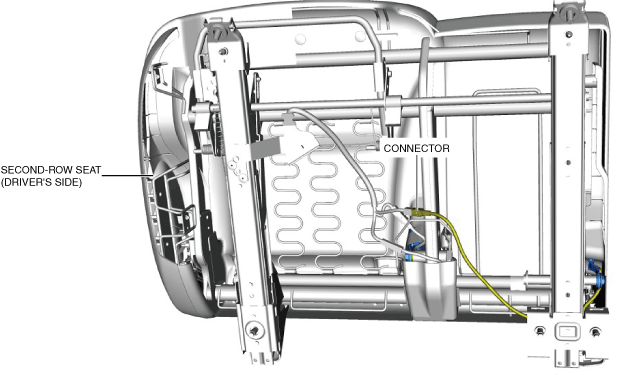

ac8wzw00000257

5.  Remove the following parts:

(1)  Second-row seat cushion (driver’s side) (See SECOND-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

(2)  Rear console-side second-row seat side cover (driver’s side) (See SECOND-ROW SEAT SIDE COVER REMOVAL/INSTALLATION.)

6.  Remove the bolt.

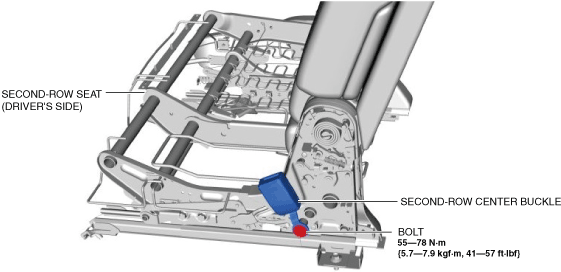

ac8wzw00000258

7.  Remove the second-row center buckle.

8.  Install in the reverse order of removal.

Driver's side

1.  Switch the ignition to off.

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the second-row seat (driver’s side). (See SECOND-ROW SEAT REMOVAL/INSTALLATION.)

4.  Disconnect the connector.

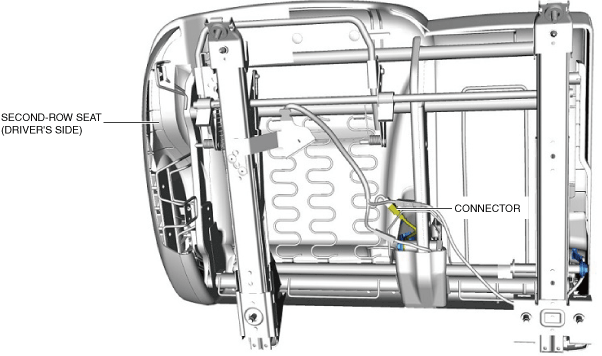

ac8wzw00000259

5.  Remove the second-row seat cushion (driver’s side). (See SECOND-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

6.  Remove the bolt.

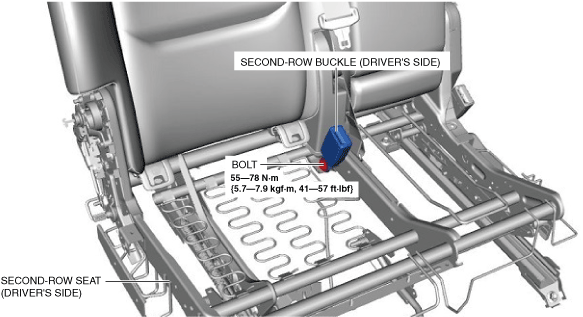

ac8wzw00000260

7.  Remove the second-row buckle (driver’s side).

8.  Install in the reverse order of removal.

Passenger's side

1.  Switch the ignition to off.

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the second-row seat (passenger's side). (See SECOND-ROW SEAT REMOVAL/INSTALLATION.)

4.  Remove the clip.

ac8wzw00000261

5.  Remove the second-row seat side cover (passenger’s side) (See SECOND-ROW SEAT SIDE COVER REMOVAL/INSTALLATION.)

6.  Remove the bolt.

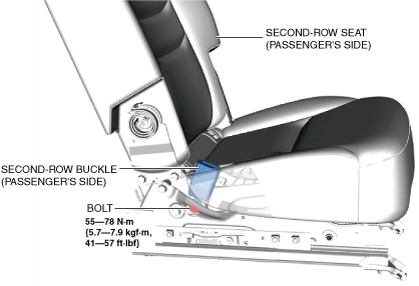

ac8wzw00000262

7.  Remove the second-row buckle (passenger’s side).

8.  Install in the reverse order of removal.

Separate Type Second-row Seat

1.  Switch the ignition to off.

2.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Second-row seat (See SECOND-ROW SEAT REMOVAL/INSTALLATION.)

(2)  Second-row seat side cover (See SECOND-ROW SEAT SIDE COVER REMOVAL/INSTALLATION.)

4.  Remove the clip.

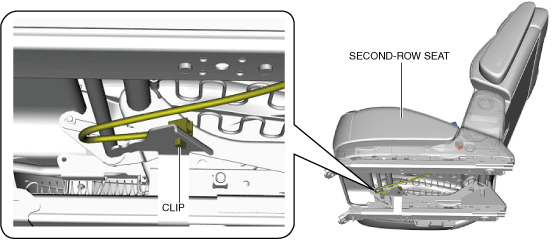

ac8wzw00003354

5.  Remove the bolt.

ac8wzw00003355

6.  Remove the second-row buckle.

7.  Install in the reverse order of removal.
