COWL PANEL REMOVAL/INSTALLATION

id091000802000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

(2)  Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION.)

(3)  Windshield wiper motor and link (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION.)

(4)  Keyless beeper (See KEYLESS BEEPER REMOVAL/INSTALLATION.)

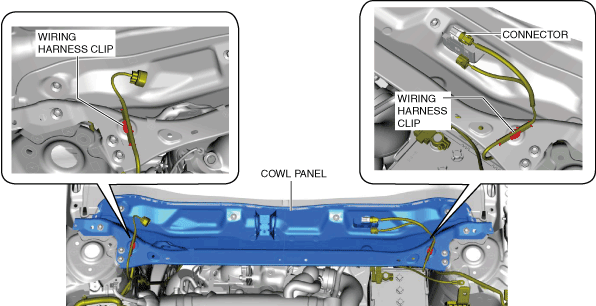

3.  Disconnect the connector.

ac8wzw00000868

4.  Detach the wiring harness clips.

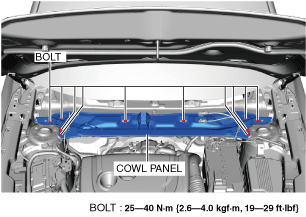

5.  Remove the bolts.

ac8wzw00000869

6.  Remove the cowl panel.

7.  Install in the reverse order of removal.
