SET PLATE REMOVAL/INSTALLATION


id091000878900

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

4.  Remove the cap.

ac8wzw00000885

5.  Remove the bolt.

ac8wzw00000886

6.  Remove the fasteners.

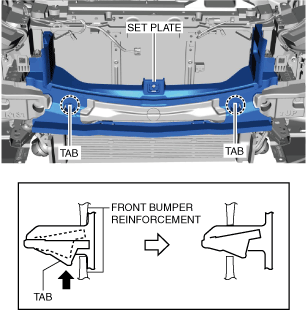

7.  Press the set plate tabs in the direction of the arrow shown in the figure and detach the tabs from the front bumper reinforcement.

ac8wzw00000887

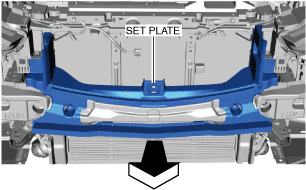

8.  Move the set plate in the direction of the arrow shown in the figure and remove it.

ac8wzw00000888

9.  Install in the reverse order of removal.
