Note

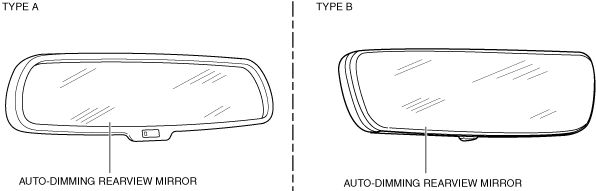

• There are two types of auto-dimming rearview mirror. Verify the auto-dimming rearview mirror shape before performing the procedures.
ac9wzw00005337
|
AUTO-DIMMING REARVIEW MIRROR REMOVAL/INSTALLATION
id091200016000
ac9wzw00005337
|
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the sensor cover. (See SENSOR COVER REMOVAL/INSTALLATION.)
3. Disconnect the auto-dimming rearview mirror connector.
ac8wzw00003300
|

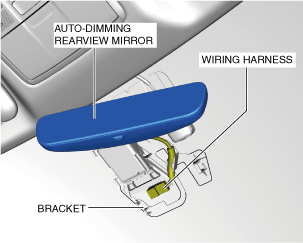

4. Remove the wiring harness from the bracket. (type B)
ac8wzw00003301
|

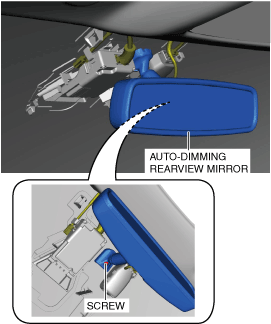

5. Loosen the screw.
ac8wzw00000948
|
6. Move the auto-dimming rearview mirror in the direction of the arrow shown in the figure and remove it from the mirror base.
ac8wzw00000949
|
7. Install in the reverse order of removal.
