FRONT DOOR LOCK-LINK SWITCH INSPECTION
id091400005700
1. Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)
2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
3. Remove the following parts:
- (1) Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)
-
- (2) Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)
-
- (3) Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)
-
- (4) Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION.)
-
- (5) Front door key cylinder (See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION.)
-
- (6) Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION.)
-
- (7) Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
-

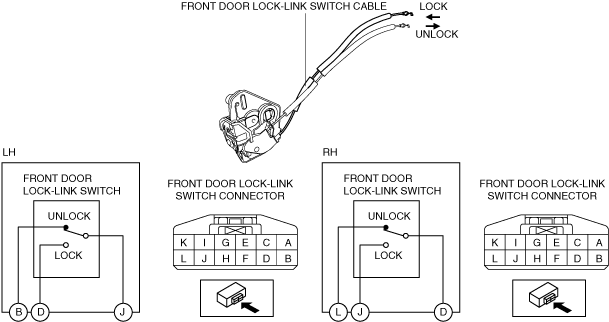

4. When the door lock-link switch cable is pulled or pressed in, verify that the continuity is as indicated in the table.
-
