REAR SASH MOLDING REMOVAL

id091600805100

Replacement part

Warning

•  Always wear gloves when using a utility knife. Using a utility knife with bare hands can cause injury.

1.  Remove the rear beltline molding. (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION.)

2.  Remove the rear door garnish. (See REAR DOOR GARNISH REMOVAL/INSTALLATION.)

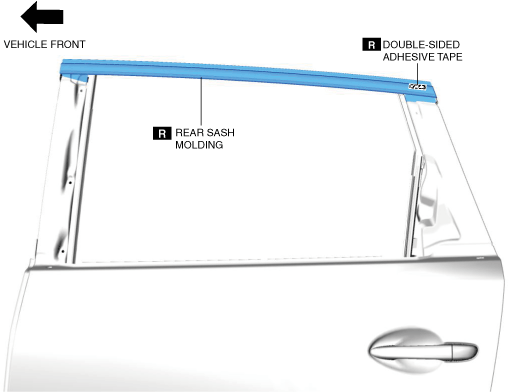

3.  Peel off the double-sided adhesive tape shown in the figure using a utility knife.

Caution

•  When cutting the double-sided adhesive tape, be careful not to damage the clip.

ac8wzw00000811

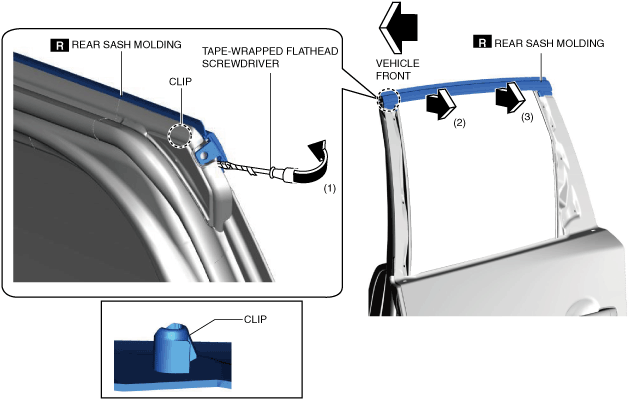

4.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of arrow (1) to detach the clip.

ac8wzw00000812

5.  Pull the rear sash molding in the order of (2) and (3) shown in the figure and remove it.
