DOOR SASH FILM REMOVAL

id091600805200


Front Door Sash Film

Replacement part

Front door sash film

Quantity: 2

Location of use: Front door sash film

1.  Perform the front door glass preparation. (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)
(2)  Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)
(3)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)
(4)  Glass run channel

4.  Pinch the front door sash film end, and while pulling it outward, remove the front door sash film.

ac8wzw00000813

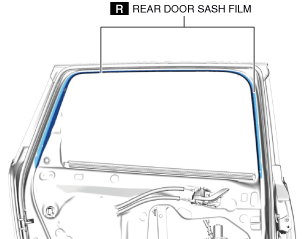

Rear Door Sash Film

Replacement part

Rear door sash film

Quantity: 2

Location of use: Rear door sash film

1.  Fully open the rear door glass.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)
(2)  Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)
(3)  Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION.)
(4)  Glass run channel

4.  Pinch the rear door sash film end, and while pulling it outward, remove the rear door sash film.

ac8wzw00000814
