REAR CONSOLE PANEL DISASSEMBLY/ASSEMBLY
id091700613800
Without Cup Holder
1. The rear console panel cannot be disassembled on vehicles without the cup holder. When replacing the rear console panel, refer to the REAR CONSOLE PANEL REMOVAL/INSTALLATION. (See REAR CONSOLE PANEL REMOVAL/INSTALLATION.)
With Cup Holder
1. Remove the rear climate control unit. (See REAR CLIMATE CONTROL UNIT REMOVAL/INSTALLATION.)
2. Remove the rear ventilator grille. (See VENTILATOR GRILLE REMOVAL/INSTALLATION.)
3. Disassemble in the order indicated in the table.
ac9uuw00010954
|
|
1
|
Console upper panel
|
|
2
|
Rear console-up
|
|
3
|
USB power outlet
|
|
4
|
Short-cord
|
|
5
|
Screw
|
|
6
|
Screw
|
|
7
|
Plate
|
|
8
|
Console panel
|
|
9
|
Screw
|
|
10
|
Side panel
(See Side Panel Removal Note.)
|
|
11
|
Screw
|
|
12
|
Cup holder
|
|
13
|
Sheet cushion
|
|
14
|
Rear console bracket
|
4. Assemble in the reverse order of disassembly.
Side Panel Removal Note

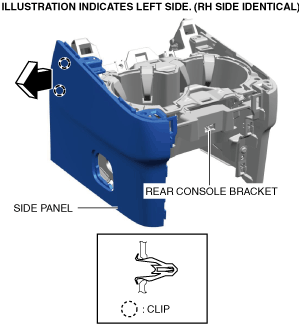

1. Move the side panel in the direction of the arrow shown in the figure and detach the clips from the rear console bracket.
ac9uuw00010988
|
2. Move the side panel in the order of arrows (1) and (2) shown in the figure, and remove it while detaching the guides.
ac9uuw00010955
|
