CARGO COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION

id091800807800

Caution

•  Always disconnect the negative battery terminal before performing the cargo compartment light bulb/LED removal. Otherwise, the circuit may be shorted resulting in damage to the related parts such as the rear body control module (RBCM).

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the cargo compartment light. (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION.)

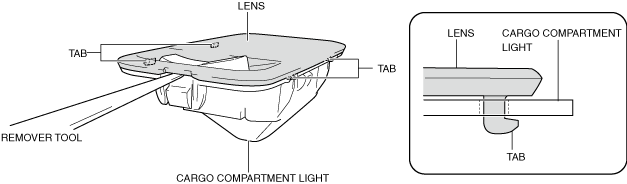

3.  Insert a remover tool into the gap between the lens and the cargo compartment light.

ac8wzw00002382

4.  Widen the gap between the lens and the cargo compartment light using the remover tool and detach the tabs of the lens from the cargo compartment light.

5.  Detach all the tabs of the lens from the cargo compartment light and remove the lens.

ac8wzw00002383

6.  Press the cargo compartment light spring in the direction of the arrow shown in the figure and detach it from the cargo compartment light bulb/LED.

7.  Remove the cargo compartment light bulb/LED.

8.  Install in the reverse order of removal.
