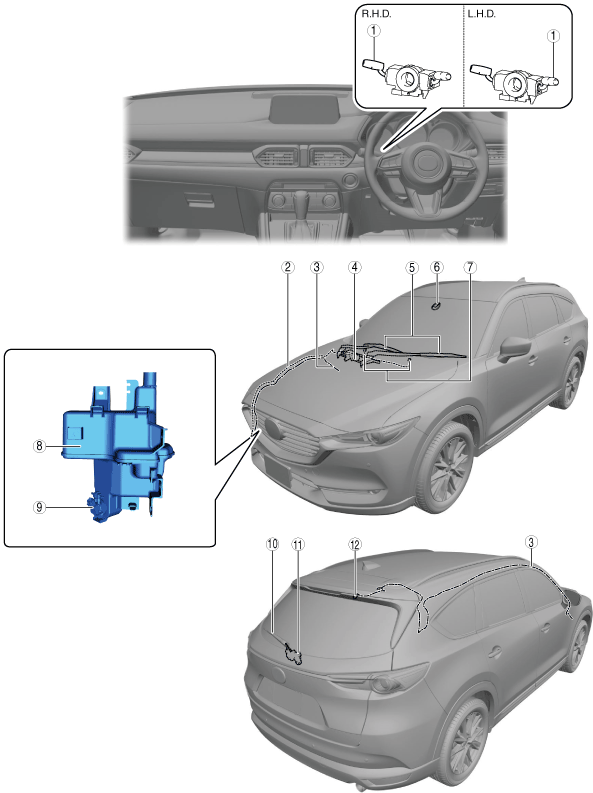

WIPER/WASHER SYSTEM LOCATION INDEX

id091900800100

ac8wzw00000324

1	Wiper and washer switch (See WIPER AND WASHER SWITCH REMOVAL/INSTALLATION.) (See WIPER AND WASHER SWITCH INSPECTION.)
2	Windshield washer hose (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION.)
3	Rear washer hose (See REAR WASHER HOSE REMOVAL/INSTALLATION.)
4	Windshield wiper motor and link (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION.) (See WINDSHIELD WIPER MOTOR INSPECTION.)
5	Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.) (See WINDSHIELD WIPER ARM AND BLADE ADJUSTMENT.)
6	Rain sensor (See RAIN SENSOR REMOVAL/INSTALLATION.) (See RAIN SENSOR INITIALIZATION SETTING.) (See WIPER/WASHER SYSTEM PERSONALIZATION FEATURES SETTING PROCEDURE.)
7	Windshield washer nozzle (See WINDSHIELD WASHER NOZZLE REMOVAL/INSTALLATION.) (See WINDSHIELD WASHER NOZZLE ADJUSTMENT.)
8	Washer tank (See WASHER TANK REMOVAL/INSTALLATION.)
9	Washer motor (See WASHER MOTOR REMOVAL/INSTALLATION.) (See WASHER MOTOR INSPECTION.)
10	Rear wiper arm and blade (See REAR WIPER ARM AND BLADE REMOVAL/INSTALLATION.) (See REAR WIPER ARM AND BLADE ADJUSTMENT.)
11	Rear wiper motor (See REAR WIPER MOTOR REMOVAL/INSTALLATION.) (See REAR WIPER MOTOR INSPECTION.)
12	Rear washer nozzle (See REAR WASHER NOZZLE REMOVAL/INSTALLATION.) (See REAR WASHER NOZZLE ADJUSTMENT.)
