AUXILIARY JACK/USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION

id092000031500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the rear console panel. (See REAR CONSOLE PANEL REMOVAL/INSTALLATION.)

3.  Disconnect the connectors.

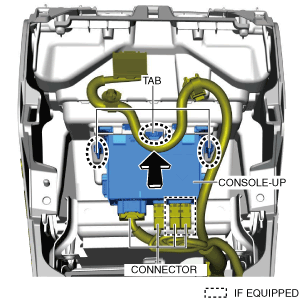

ac8wzw00003306

4.  Move console-up in the direction of the arrow shown in the figure and remove it while detaching the tabs.

5.  While pressing the tabs of the auxiliary jack/USB port/SD card slot hub in the direction of arrows (1) shown in the figure, move the auxiliary jack/USB port/SD card slot hub in the direction of arrow (2) and detach the tabs of the auxiliary jack/USB port/SD card slot hub from the console-up.

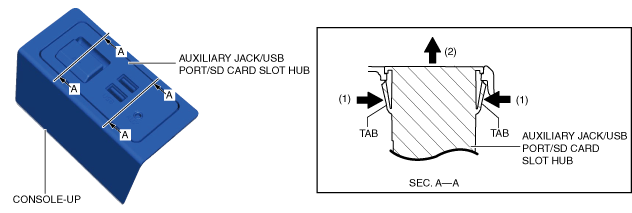

ac8wzw00001818

6.  Remove the auxiliary jack/USB port/SD card slot hub.

7.  Install in the reverse order of removal.
