DVD/CD PLAYER REMOVAL/INSTALLATION

id092000032100

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(2)  Upper decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3)  Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(5)  Meter hood No.1 (See METER HOOD REMOVAL/INSTALLATION.)

(6)  Center display component (See CENTER DISPLAY REMOVAL/INSTALLATION.)

3.  Remove the screw.

ac5wzw00009939

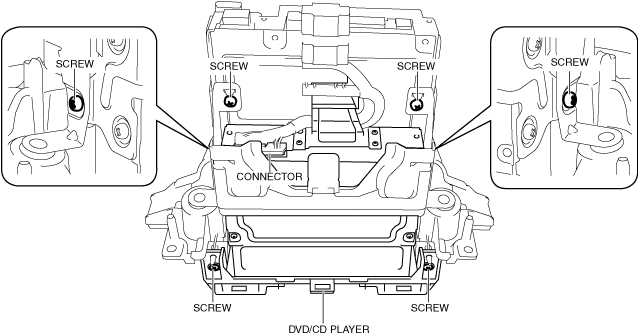

4.  Disconnect the connector.

ac5wzw00009940

5.  Remove the screws.

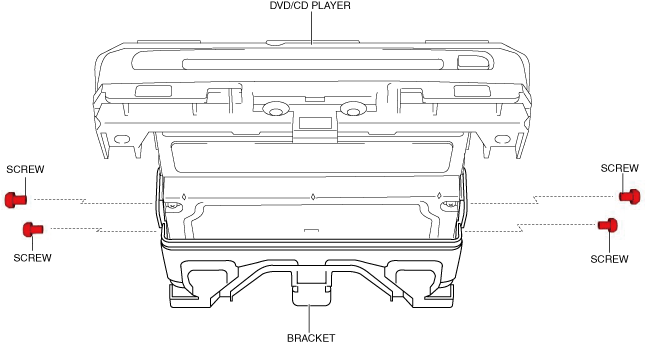

6.  Remove the screws.

ac5wzw00009941

7.  Remove the bracket.

8.  Remove the DVD/CD player.

9.  Install in the reverse order of removal.
