INSTRUMENT CLUSTER REMOVAL/INSTALLATION

id092200010300

Caution

•  If configuration is not performed when the instrument cluster is replaced with a new one, the vehicle specification information is not stored in the instrument cluster and the system will not operate normally.

•  When performing configuration, it is necessary to read the vehicle specification information from the instrument cluster before replacing it. Connect the M-MDS to the vehicle and perform vehicle identification before removing the instrument cluster. The vehicle specification information is temporarily stored in the M-MDS.

•  If the instrument cluster is left for a long time with its screen facing down, grease applied to the needles may leak out and the needles may not operate smoothly. When storing the instrument cluster, store it with its screen facing upward.

ac5wzw00002948

Note

•  Vehicle specification information is stored on the instrument cluster prior to replacement.

•  Vehicle specification information is not stored on a new instrument cluster.

•  If the vehicle specification information from the instrument cluster prior to replacement cannot be read, perform the configuration using As-Built data.

1.  When replacing the instrument cluster, perform the configuration. (See INSTRUMENT CLUSTER CONFIGURATION (USING READ/WRITE FUNCTION).)

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts.

(1)  Lower decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(2)  Upper decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(3)  Driver's decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION.)

(4)  Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION.)

(5)  Meter hood (See METER HOOD REMOVAL/INSTALLATION.)

4.  Remove the screws.

ac8wzw00000535

Caution

•  When removing the instrument cluster, cover the light switch, wiper switch, and the start stop unit using a cloth. Otherwise, the instrument cluster may contact the light switch, wiper switch, or the start stop unit and cause scratching or damage to the instrument cluster.

5.  Cover the light switch, wiper switch, and start stop unit using a cloth to prevent scratches.

ac8wzw00000536

6.  Pull the instrument cluster outward to detach it from the dashboard pins.

ac8wzw00000537

7.  Rotate the instrument cluster in the direction of the arrow shown in the figure.

ac8wzw00000538

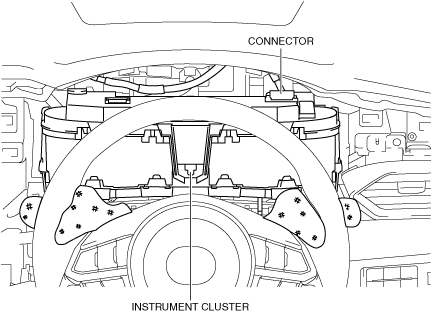

8.  Disconnect the connector.

ac8wzw00000539

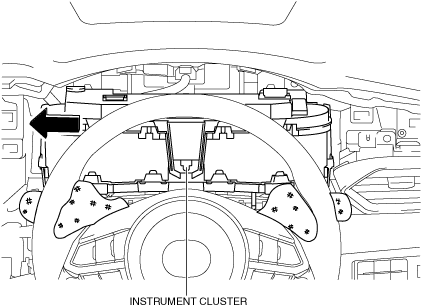

9.  Remove the instrument cluster by sliding it between the dashboard and the steering wheel.

ac8wzw00000540

10.  Install in the reverse order of removal.

Note

•  If configuration cannot be performed by reading/writing of the vehicle specification information, perform the configuration using As-Built information after replacing the instrument cluster. (See INSTRUMENT CLUSTER CONFIGURATION (USING AS-BUILT DATA).)

11.  After performing the configuration (writing), switch the ignition ON (engine off or on) and verify that the instrument cluster operates normally.

•  If [Fctry] or [Factory] is indicated on the traveled distance display, perform the following procedure to clear the indication.

1.  Remove the ROOM fuse.

2.  Switch the ignition ON (engine off) while touching the center of the push button start with the upper part of the remote transmitter.

3.  Switch the ignition OFF.

4.  Install the ROOM fuse.

5.  Switch the ignition ON (engine off) and verify that the indication is cleared.

Insulator Installation Note

ac8wzw00000541
