REAR ULTRASONIC SENSOR REMOVAL/INSTALLATION

id092200030900

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the rear combination light. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

3.  Remove the rear bumper. (See REAR BUMPER REMOVAL/INSTALLATION.)

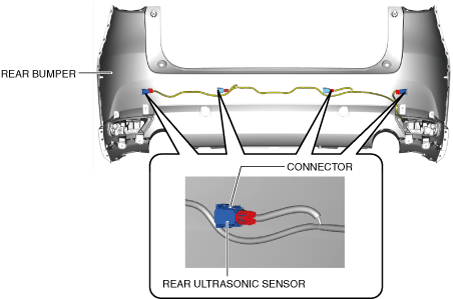

4.  Disconnect the connectors.

ac8wzw00000569

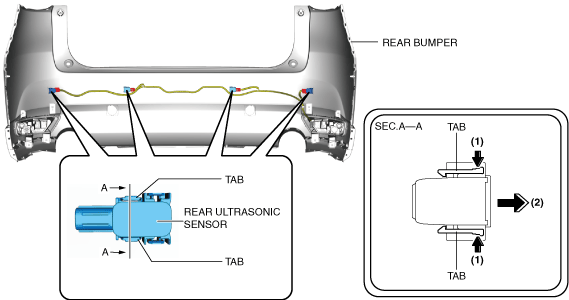

5.  While pressing the rear ultrasonic sensor tabs in the direction of arrows(1) shown in the figure, pull the rear ultrasonic sensor in the direction of arrow (2) and remove it from the rear bumper.

ac8jjw00000131

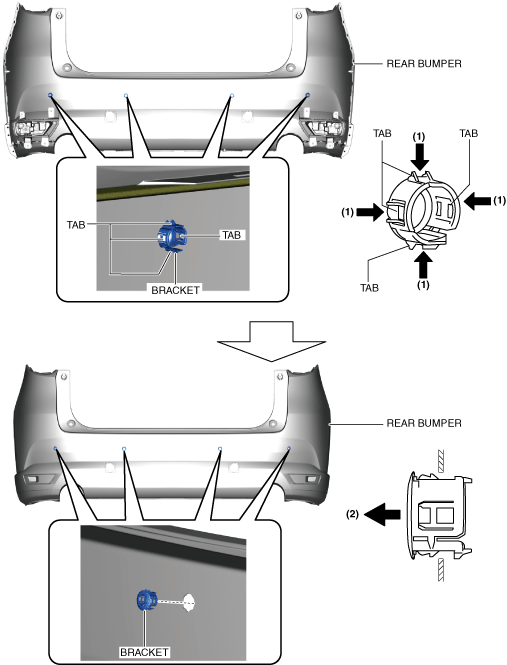

6.  While pressing the bracket tabs in the direction of arrows (1) shown in the figure, press the bracket in the direction of arrow (2) and detach the bracket tabs from the rear bumper.

ac8wzw00000570

7.  Remove the brackets.

8.  Install in the reverse order of removal.
