FRONT ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION

id092200031000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

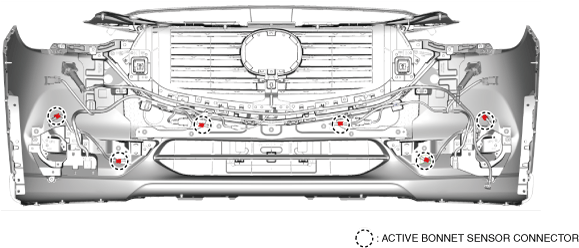

3.  Disconnect the active bonnet sensor connectors. (See ACTIVE BONNET SENSOR REMOVAL/INSTALLATION.)

ac8wzw00000571

4.  Disconnect the sensor connectors and camera connector.

ac8wzw00000572

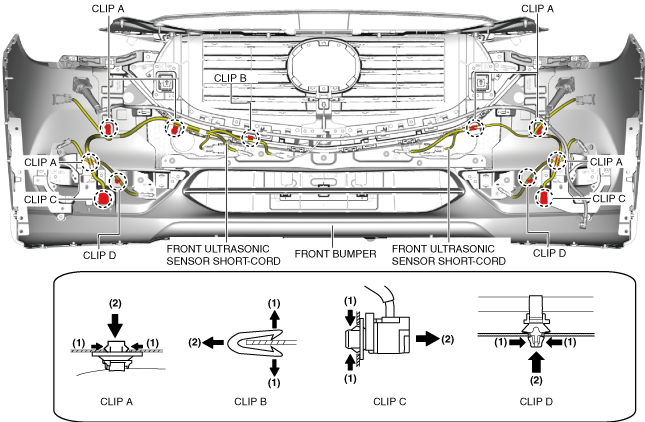

5.  While pressing the tabs of clip A in the direction of arrow (1) shown in the figure, move clip A in the direction of arrow (2) and remove it from the front bumper.

6.   While spreading the tabs of clip B in the direction of arrows (1) shown in the figure, pull clip B in the direction of arrow (2) and detach the tabs of clip B from the front bumper.

7.  While pressing the tabs of clip C in the direction of arrows (1) shown in the figure, move clip C in the direction of arrow (2) and remove it from the front bumper.

8.  While pressing the tabs of clip D in the direction of arrows (1) shown in the figure, move clip D in the direction of arrow (2) and remove it from the front bumper.

ac8wzw00000573

9.  Remove the front ultrasonic sensor short cord.

10.  Install in the reverse order of removal.
