REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION

id092200031100

Replacement part

Tape

Quantity: 5

Location of use: Rear ultrasonic sensor short cord

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the rear combination light. (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

3.  Remove the rear bumper. (See REAR BUMPER REMOVAL/INSTALLATION.)

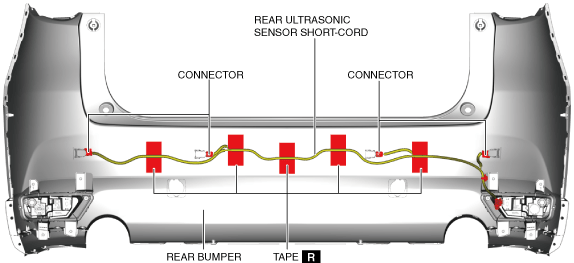

4.  Peel off the tape from the rear bumper.

ac8wzw00000574

5.  Disconnect the connectors from the rear ultrasonic sensor.

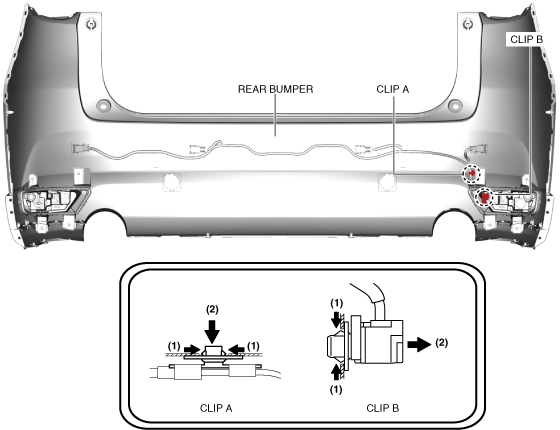

6.  While pressing the tabs of clips A and B in the direction of arrows (1) shown in the figure, press clips A and B in the direction of arrows (2) and detach the tabs of clips A and B from the rear bumper.

ac8wzw00000575

7.  Install in the reverse order of removal. (See Rear Ultrasonic Sensor Short-cord Installation Note.)


Rear Ultrasonic Sensor Short-cord Installation Note

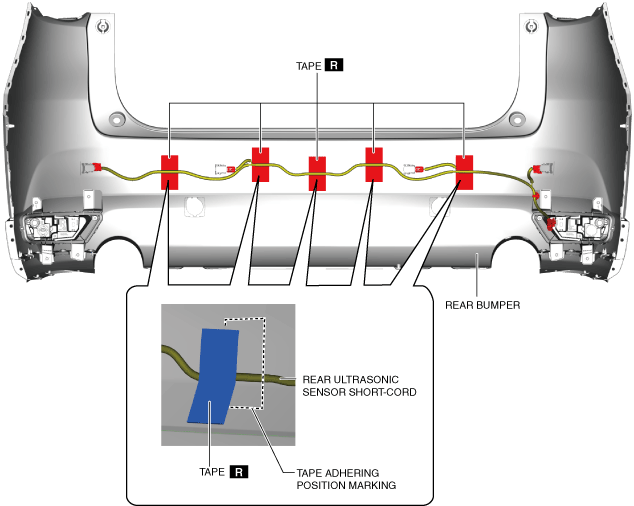

Align the installation height of the rear ultrasonic sensor short cord with the center of the scribed line on the rear bumper and adhere the rear ultrasonic sensor short cord to the rear bumper using tape.
ac8wzw00000576
