FRONT CAMERA REMOVAL/INSTALLATION

id152000009700

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the seal board upper.(See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

3.  Remove the front bumper.(See FRONT BUMPER REMOVAL/INSTALLATION.)

4.  Disconnect the connector.

ac8wzw00001128

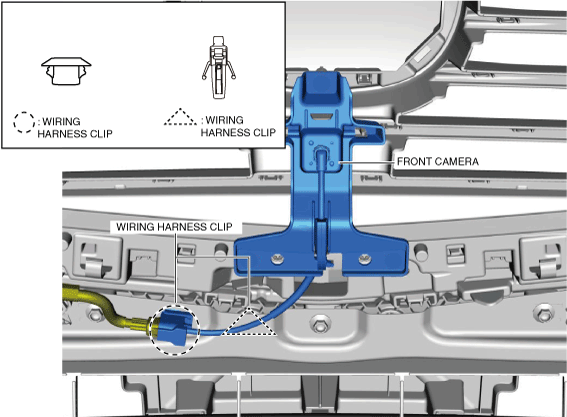

5.  Remove the screws.

6.  Remove the wiring harness clips.

ac8wzw00001129

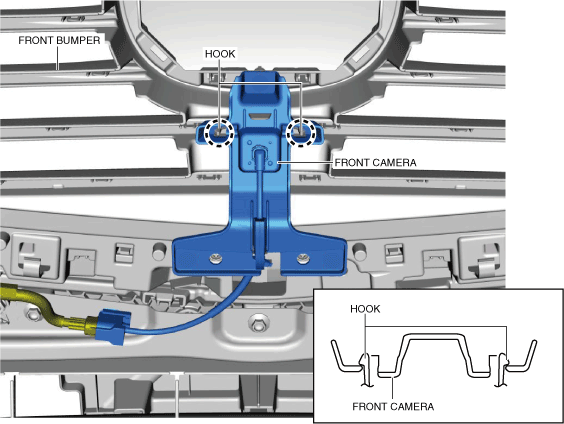

7.  Remove the front camera while detaching the hooks in the positions shown in the figure.

ac8wzw00002444

8.  Install in the reverse order of removal.

9.  Perform the front camera aiming. (See 360°VIEW MONITOR SYSTEM AIMING.)
