DTC B1016:24 [REAR POWER SEAT CONTROL MODULE (RH)]

id0902t3569900

Description

Limit switch (RH) input circuit malfunction

Detection condition

•  Rear power seat control module (RH) detects that the limit switch No.1 (RH) input circuit is stuck on or the limit switch No.2 (RH) input circuit is stuck off.

Fail-safe

•  Inhibits the rear power walk-in operation function from being driven.

•  Inhibits the rear power walk-in return function from being driven.

Possible cause

•  Limit switch No.2 (RH) connector or terminal malfunction

•  Open circuit in wiring harness between limit switch No.2 (RH) terminal B and body ground

•  Rear power seat control module (RH) connector or terminal malfunction

•  Open circuit in wiring harness between rear power seat control module (RH) terminal 2N and limit switch No.2 (RH) terminal A

•  Limit switch No.1 (RH) connector or terminal malfunction

•  Short to ground in wiring harness between rear power seat control module (RH) terminal 3M and limit switch No.1 (RH) terminal A

•  Limit switch No.1 (RH) circuits are shorted to each other

•  Limit switch No.1 (RH) malfunction

•  Limit switch No.2 (RH) malfunction

•  Rear power seat control module (RH) malfunction

Description	Limit switch (RH) input circuit malfunction
Detection condition	• Rear power seat control module (RH) detects that the limit switch No.1 (RH) input circuit is stuck on or the limit switch No.2 (RH) input circuit is stuck off.
Fail-safe	• Inhibits the rear power walk-in operation function from being driven. • Inhibits the rear power walk-in return function from being driven.
Possible cause	• Limit switch No.2 (RH) connector or terminal malfunction • Open circuit in wiring harness between limit switch No.2 (RH) terminal B and body ground • Rear power seat control module (RH) connector or terminal malfunction • Open circuit in wiring harness between rear power seat control module (RH) terminal 2N and limit switch No.2 (RH) terminal A • Limit switch No.1 (RH) connector or terminal malfunction • Short to ground in wiring harness between rear power seat control module (RH) terminal 3M and limit switch No.1 (RH) terminal A • Limit switch No.1 (RH) circuits are shorted to each other • Limit switch No.1 (RH) malfunction • Limit switch No.2 (RH) malfunction • Rear power seat control module (RH) malfunction

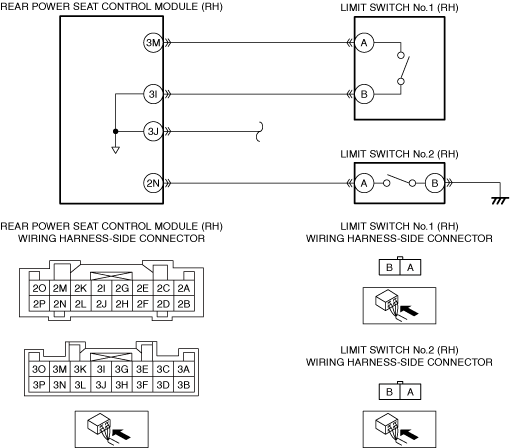

Diagnostic Procedure

Step

Inspection

Action

1

INSPECT LIMIT SWITCH No.2 (RH) CONNECTOR CONDITION

•  Switch the ignition off.

•  Disconnect the negative battery terminal.
(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

•  Disconnect the limit switch No.2 (RH) connector.

•  Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.

•  Is the connector normal?

Yes

Go to the next step.

No

Repair or replace the connector and/or terminals, then go to Step 10.

2

INSPECT LIMIT SWITCH No.2 (RH) GROUND CIRCUIT FOR OPEN CIRCUIT

•  Verify that the limit switch No.2 (RH) connector is disconnected.

•  Inspect for continuity between limit switch No.2 (RH) terminal B (wiring harness-side) and body ground.

•  Is there continuity?

Yes

Go to the next step.

No

Refer to the wiring diagram and verify whether or not there is a common connector between limit switch No.2 (RH) terminal B and body ground.

If there is a common connector:

•  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit.

•  Repair or replace the malfunctioning part.

If there is no common connector:

•  Repair or replace the wiring harness which has an open circuit.

Go to Step 10.

3

INSPECT REAR POWER SEAT CONTROL MODULE (RH) CONNECTOR CONDITION

•  Disconnect the rear power seat control module (RH) connector.

•  Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.

•  Is the connector normal?

Yes

Go to the next step.

No

Repair or replace the connector and/or terminals, then go to Step 10.

4

INSPECT LIMIT SWITCH No.2 (RH) CIRCUIT FOR OPEN CIRCUIT

•  Verify that the limit switch No.2 (RH) and rear power seat control module (RH) connectors are disconnected.

•  Inspect for continuity between rear power seat control module (RH) terminal 2N (wiring harness-side) and limit switch No.2 (RH) terminal A (wiring harness-side).

•  Is there continuity?

Yes

Go to the next step.

No

Refer to the wiring diagram and verify whether or not there is a common connector between rear power seat control module (RH) terminal 2N and limit switch No.2 (RH) terminal A.

If there is a common connector:

•  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit.

•  Repair or replace the malfunctioning part.

If there is no common connector:

•  Repair or replace the wiring harness which has an open circuit.

Go to Step 10.

5

INSPECT LIMIT SWITCH No.1 (RH) CONNECTOR CONDITION

•  Disconnect the limit switch No.1 (RH) connector.

•  Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.

•  Is the connector normal?

Yes

Go to the next step.

No

Repair or replace the connector and/or terminals, then go to Step 10.

6

INSPECT LIMIT SWITCH No.1 (RH) CIRCUIT FOR SHORT TO GROUND

•  Verify that the limit switch No.1 (RH) and rear power seat control module (RH) connectors are disconnected.

•  Inspect for continuity between rear power seat control module (RH) terminal 3M (wiring harness-side) and body ground.

•  Is there continuity?

Yes

Refer to the wiring diagram and verify whether or not there is a common connector between rear power seat control module (RH) terminal 3M and limit switch No.1 (RH) terminal A.

If there is a common connector:

•  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground.

•  Repair or replace the malfunctioning part.

If there is no common connector:

•  Repair or replace the wiring harness which has a short to ground.

Go to Step 10.

No

Go to the next step.

7

INSPECT LIMIT SWITCH No.1 (RH) CIRCUITS FOR SHORT TO EACH OTHER

•  Verify that the limit switch No.1 (RH) and rear power seat control module (RH) connectors are disconnected.

•  Inspect for continuity between the following terminals (wiring harness-side):

―  Rear power seat control module (RH) terminal 3M, 3I

―  Rear power seat control module (RH) terminal 3M, 3J

•  Is there continuity?

Yes

Refer to the wiring diagram and verify whether or not there is a common connector between the following circuits:

•  Rear power seat control module (RH) terminal 3M—Limit switch No.1 (RH) terminal A

•  Rear power seat control module (RH) terminal 3I—Limit switch No.1 (RH) terminal B

•  Rear power seat control module (RH) terminal 3J circuit

If there is a common connector:

•  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to each other.

•  Repair or replace the malfunctioning part.

If there is no common connector:

•  Repair or replace the malfunctioning wiring harness.

Go to Step 10.

No

Go to the next step.

8

INSPECT LIMIT SWITCH No.1 (RH) AND LIMIT SWITCH No.2 (RH)

•  Inspect the limit switch No.1 (RH) and limit switch No.2 (RH).
(See LIMIT SWITCH INSPECTION.)

•  Is the part normal?

Yes

Go to the next step.

No

Replace the second-row seat (RH), then go to Step 10.

(See SECOND-ROW SEAT REMOVAL/INSTALLATION.)

9

INSPECT REAR POWER SEAT CONTROL MODULE (RH)

•  Inspect the rear power seat control module (RH).
(See REAR POWER SEAT CONTROL MODULE (RH) INSPECTION.)

•  Is the part normal?

Yes

Go to the next step.

No

Replace the second-row seat (RH), then go to the next step.

(See SECOND-ROW SEAT REMOVAL/INSTALLATION.)

10

VERIFY THAT REPAIRS HAVE BEEN COMPLETED

•  Reconnect all the disconnected connectors with the negative battery terminal disconnected.

•  Connect the negative battery terminal.
(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

•  Clear the DTC for the rear power seat control module (RH) using the M-MDS.
(See CLEARING DTC [REAR POWER SEAT CONTROL MODULE (RH)].)

•  Retrieve the rear power seat control module (RH) DTCs using the M-MDS.
(See DTC INSPECTION [REAR POWER SEAT CONTROL MODULE (RH)].)

•  Is the same Pending DTC present?

Yes

Repeat the inspection from Step 1.

•  If the malfunction recurs, replace the second-row seat (RH).
(See SECOND-ROW SEAT REMOVAL/INSTALLATION.)

Go to the next step.

No

Go to the next step.

11

VERIFY IF OTHER DTCs DISPLAYED

•  Are any other DTCs displayed?

Yes

Repair or replace the malfunctioning part according to the applicable DTC troubleshooting.

(See DTC TABLE [REAR POWER SEAT CONTROL MODULE (RH)].)

No

DTC troubleshooting completed.
