DTC B10E7:16 [REAR POWER SEAT CONTROL MODULE (RH)]

id0902t3570500

Description

Rear power seat control module (RH) IG1 power supply voltage malfunction

Detection condition

•  The rear power seat control module (RH) detects that the IG1 power supply voltage is a certain value or less with the ignition switched ON (engine off or on).

Fail-safe

•  Inhibits the rear power slide function from being driven.

•  Inhibits the rear power recliner function from being driven.

•  Inhibits the rear power walk-in operation function from being driven.

•  Inhibits the rear power walk-in return function from being driven.

Possible cause

•  IG1 power supply circuit malfunction (Related DTCs are stored in the start stop unit)

•  Charging system malfunction (Related DTCs are stored in the PCM)

•  Battery malfunction

•  Generator malfunction

•  Rear power seat control module (RH) connector or terminal malfunction

•  IG1 power supply circuit malfunction

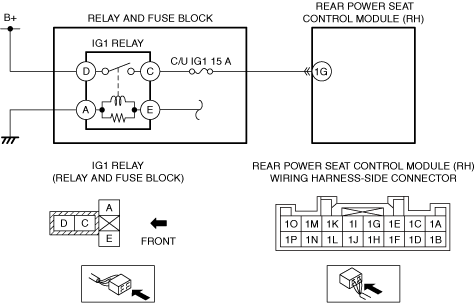

―  Short to ground in wiring harness between C/U IG1 15 A fuse and rear power seat control module (RH) terminal 1G

―  C/U IG1 15 A fuse malfunction

―  Open circuit in wiring harness between IG1 relay terminal C and rear power seat control module (RH) terminal 1G

•  Rear power seat control module (RH) malfunction

Description	Rear power seat control module (RH) IG1 power supply voltage malfunction
Detection condition	• The rear power seat control module (RH) detects that the IG1 power supply voltage is a certain value or less with the ignition switched ON (engine off or on).
Fail-safe	• Inhibits the rear power slide function from being driven. • Inhibits the rear power recliner function from being driven. • Inhibits the rear power walk-in operation function from being driven. • Inhibits the rear power walk-in return function from being driven.
Possible cause	• IG1 power supply circuit malfunction (Related DTCs are stored in the start stop unit) • Charging system malfunction (Related DTCs are stored in the PCM) • Battery malfunction • Generator malfunction • Rear power seat control module (RH) connector or terminal malfunction • IG1 power supply circuit malfunction ― Short to ground in wiring harness between C/U IG1 15 A fuse and rear power seat control module (RH) terminal 1G ― C/U IG1 15 A fuse malfunction ― Open circuit in wiring harness between IG1 relay terminal C and rear power seat control module (RH) terminal 1G • Rear power seat control module (RH) malfunction

Diagnostic Procedure

Step

Inspection

Action

1

VERIFY START STOP UNIT DTCs

•  Retrieve the start stop unit DTCs using the M-MDS.
(See DTC INSPECTION [START STOP UNIT].)

•  Are any DTCs displayed?

Yes

Repair or replace the malfunctioning part according to the applicable DTC troubleshooting.

(See DTC TABLE [START STOP UNIT].)

No

Go to the next step.

2

VERIFY PCM DTCs

•  Retrieve the PCM DTCs using the M-MDS.
(See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-G 2.5)].)

(See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)].)

•  Are any DTCs displayed?

Yes

Repair or replace the malfunctioning part according to the applicable DTC troubleshooting.

(See DTC TABLE [PCM (SKYACTIV-G 2.5)].)

(See DTC TABLE [PCM (SKYACTIV-D 2.2)].)

No

Go to the next step.

3

INSPECT BATTERY

•  Inspect the battery.
(See BATTERY INSPECTION.)

•  Is the part normal?

Yes

Go to the next step.

No

Recharge or replace the battery, then go to Step 8.

(See BATTERY RECHARGING.)

(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

(See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)

4

INSPECT GENERATOR

•  Inspect the generator.
(See GENERATOR INSPECTION [SKYACTIV-G 2.5].)

(See GENERATOR INSPECTION [SKYACTIV-D 2.2].)

•  Is the part normal?

Yes

Go to the next step.

No

Replace the generator, then go to Step 8.

(See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)

(See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

5

INSPECT REAR POWER SEAT CONTROL MODULE (RH) CONNECTOR CONDITION

•  Switch the ignition off.

•  Disconnect the negative battery terminal.
(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

•  Disconnect the rear power seat control module (RH) connector.

•  Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.

•  Is the connector normal?

Yes

Go to the next step.

No

Repair or replace the connector and/or terminals, then go to Step 8.

6

INSPECT IG1 POWER SUPPLY CIRCUIT

•  Verify that the rear power seat control module (RH) connector is disconnected.

•  Install the IG1 relay.
(See RELAY LOCATION.)

•  Connect the negative battery terminal.
(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

•  Switch the ignition ON (engine off or on).

•  Measure the voltage at the rear power seat control module (RH) terminal 1G (wiring harness-side).

•  Is the voltage B+?

Yes

Go to the next step.

No

Inspect the C/U IG1 15 A fuse.

•  If the fuse is blown:

―  Refer to the wiring diagram and verify whether or not there is a common connector between C/U IG1 15 A fuse and rear power seat control module (RH) terminal 1G.

If there is a common connector:

•  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground.

•  Repair or replace the malfunctioning part.

If there is no common connector:

•  Repair or replace the wiring harness which has a short to ground.

•  Replace the fuse.

•  If the fuse is damaged:

―  Replace the fuse.

•  If the fuse is normal:

―  Refer to the wiring diagram and verify whether or not there is a common connector between IG1 relay terminal C and rear power seat control module (RH) terminal 1G.

If there is a common connector:

•  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit.

•  Repair or replace the malfunctioning part.

If there is no common connector:

•  Repair or replace the wiring harness which has an open circuit.

Go to Step 8.

7

INSPECT REAR POWER SEAT CONTROL MODULE (RH)

•  Inspect the rear power seat control module (RH).
(See REAR POWER SEAT CONTROL MODULE (RH) INSPECTION.)

•  Is the part normal?

Yes

Go to the next step.

No

Replace the second-row seat (RH), then go to the next step.

(See SECOND-ROW SEAT REMOVAL/INSTALLATION.)

8

VERIFY THAT REPAIRS HAVE BEEN COMPLETED

•  Reconnect all the disconnected connectors with the negative battery terminal disconnected.

•  Connect the negative battery terminal.
(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

•  Clear the DTC for the rear power seat control module (RH) using the M-MDS.
(See CLEARING DTC [REAR POWER SEAT CONTROL MODULE (RH)].)

•  Retrieve the rear power seat control module (RH) DTCs using the M-MDS.
(See DTC INSPECTION [REAR POWER SEAT CONTROL MODULE (RH)].)

•  Is the same Pending DTC present?

Yes

Repeat the inspection from Step 1.

•  If the malfunction recurs, replace the second-row seat (RH).
(See SECOND-ROW SEAT REMOVAL/INSTALLATION.)

Go to the next step.

No

Go to the next step.

9

VERIFY IF OTHER DTCs DISPLAYED

•  Are any other DTCs displayed?

Yes

Repair or replace the malfunctioning part according to the applicable DTC troubleshooting.

(See DTC TABLE [REAR POWER SEAT CONTROL MODULE (RH)].)

No

DTC troubleshooting completed.

Step	Inspection		Action
1	VERIFY START STOP UNIT DTCs • Retrieve the start stop unit DTCs using the M-MDS. (See DTC INSPECTION [START STOP UNIT].) • Are any DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [START STOP UNIT].)
1		No	Go to the next step.
2	VERIFY PCM DTCs • Retrieve the PCM DTCs using the M-MDS. (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-G 2.5)].) (See ON-BOARD DIAGNOSTIC TEST [PCM (SKYACTIV-D 2.2)].) • Are any DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [PCM (SKYACTIV-G 2.5)].) (See DTC TABLE [PCM (SKYACTIV-D 2.2)].)
2		No	Go to the next step.
3	INSPECT BATTERY • Inspect the battery. (See BATTERY INSPECTION.) • Is the part normal?	Yes	Go to the next step.
3		No	Recharge or replace the battery, then go to Step 8. (See BATTERY RECHARGING.) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-D 2.2].) (See BATTERY REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
4	INSPECT GENERATOR • Inspect the generator. (See GENERATOR INSPECTION [SKYACTIV-G 2.5].) (See GENERATOR INSPECTION [SKYACTIV-D 2.2].) • Is the part normal?	Yes	Go to the next step.
4		No	Replace the generator, then go to Step 8. (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See GENERATOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
5	INSPECT REAR POWER SEAT CONTROL MODULE (RH) CONNECTOR CONDITION • Switch the ignition off. • Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Disconnect the rear power seat control module (RH) connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
5		No	Repair or replace the connector and/or terminals, then go to Step 8.
6	INSPECT IG1 POWER SUPPLY CIRCUIT • Verify that the rear power seat control module (RH) connector is disconnected. • Install the IG1 relay. (See RELAY LOCATION.) • Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Switch the ignition ON (engine off or on). • Measure the voltage at the rear power seat control module (RH) terminal 1G (wiring harness-side). • Is the voltage B+?	Yes	Go to the next step.
6		No	Inspect the C/U IG1 15 A fuse. • If the fuse is blown: ― Refer to the wiring diagram and verify whether or not there is a common connector between C/U IG1 15 A fuse and rear power seat control module (RH) terminal 1G. If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground. • Repair or replace the malfunctioning part. If there is no common connector: • Repair or replace the wiring harness which has a short to ground. • Replace the fuse. • If the fuse is damaged: ― Replace the fuse. • If the fuse is normal: ― Refer to the wiring diagram and verify whether or not there is a common connector between IG1 relay terminal C and rear power seat control module (RH) terminal 1G. If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit. • Repair or replace the malfunctioning part. If there is no common connector: • Repair or replace the wiring harness which has an open circuit. Go to Step 8.
7	INSPECT REAR POWER SEAT CONTROL MODULE (RH) • Inspect the rear power seat control module (RH). (See REAR POWER SEAT CONTROL MODULE (RH) INSPECTION.) • Is the part normal?	Yes	Go to the next step.
7		No	Replace the second-row seat (RH), then go to the next step. (See SECOND-ROW SEAT REMOVAL/INSTALLATION.)
8	VERIFY THAT REPAIRS HAVE BEEN COMPLETED • Reconnect all the disconnected connectors with the negative battery terminal disconnected. • Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Clear the DTC for the rear power seat control module (RH) using the M-MDS. (See CLEARING DTC [REAR POWER SEAT CONTROL MODULE (RH)].) • Retrieve the rear power seat control module (RH) DTCs using the M-MDS. (See DTC INSPECTION [REAR POWER SEAT CONTROL MODULE (RH)].) • Is the same Pending DTC present?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the second-row seat (RH). (See SECOND-ROW SEAT REMOVAL/INSTALLATION.) Go to the next step.
8		No	Go to the next step.
9	VERIFY IF OTHER DTCs DISPLAYED • Are any other DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [REAR POWER SEAT CONTROL MODULE (RH)].)
9		No	DTC troubleshooting completed.
