BUMPER SLIDER REMOVAL/INSTALLATION

id091000822500

Front Bumper Slider

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

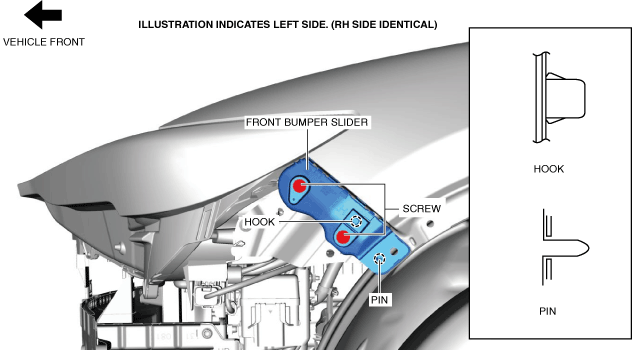

4.  Remove the screws.

ac8wzw00000880

5.  Detach the pin and the hook, and remove the front bumper slider.

6.  Install in the reverse order of removal.

7.  Perform the 360° view monitor system aiming. (With 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)

Rear Bumper Stay

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear combination light (See REAR COMBINATION LIGHT REMOVAL/INSTALLATION.)

(2)  Rear splash shield (See SPLASH SHIELD REMOVAL/INSTALLATION.)

(3)  Rear bumper (See REAR BUMPER REMOVAL/INSTALLATION.)

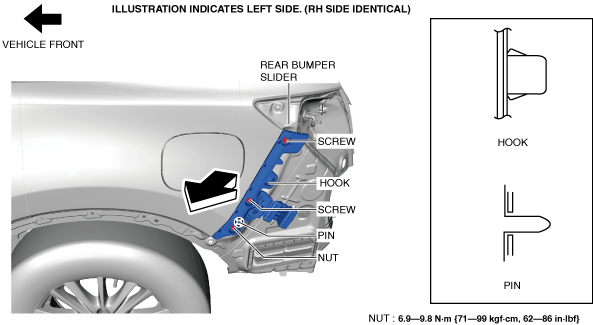

3.  Remove the screws.

ac8wzw00003340

4.  Remove the nut.

5.  Detach the hook and the pin, and remove the rear bumper slider.

6.  Install in the reverse order of removal.
