REAR POWER SEAT CONTROL MODULE (RH) REMOVAL/INSTALLATION

id091300813000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the second-row seat (See SECOND-ROW SEAT REMOVAL/INSTALLATION.)

3.  Disconnect the rear power seat control module connectors.

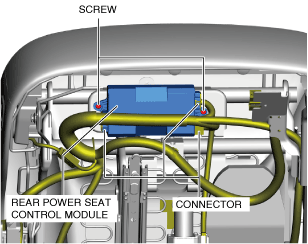

ac9wzw00006412

4.  Remove the screws.

5.  Remove the rear power seat control module.

6.  Install in the reverse order of removal.

7.  If the rear power seat control module is replaced, perform the seat position initial learning. (See SEAT POSITION INITIAL LEARNING.)
