FRONT ULTRASONIC SENSOR SHORT-CORD INSPECTION

id092200031800

Type-A

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

3. Disconnect the active bonnet sensor connectors. (See ACTIVE BONNET SENSOR REMOVAL/INSTALLATION.)

4. Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

5. Remove the front ultrasonic sensor short-cord. (See FRONT ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)

6. Verify that the continuity between the front ultrasonic sensor short-cord terminals is as indicated in the table.

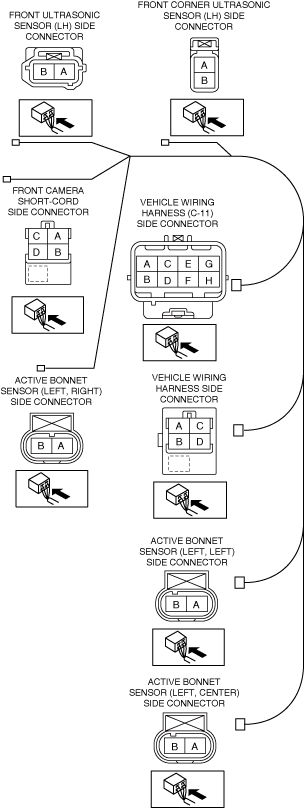

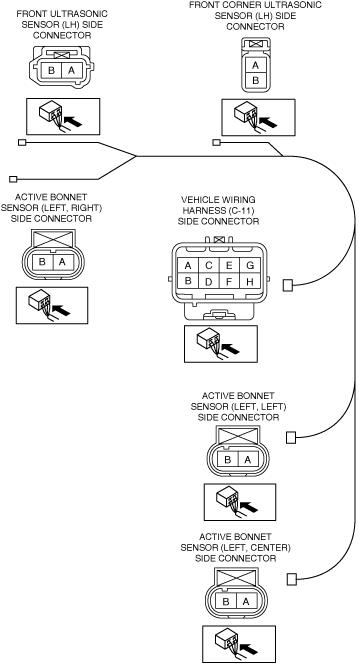

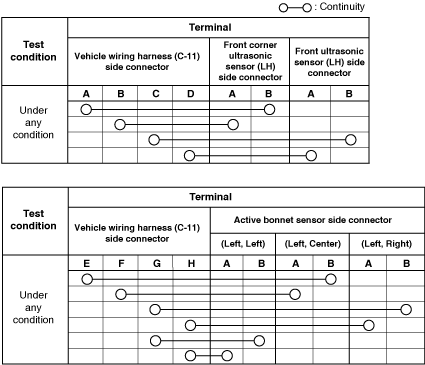

Front ultrasonic sensor short-cord (LH) (without 360° view monitor system)

ac8wzw00004844

ac8wzw00004841

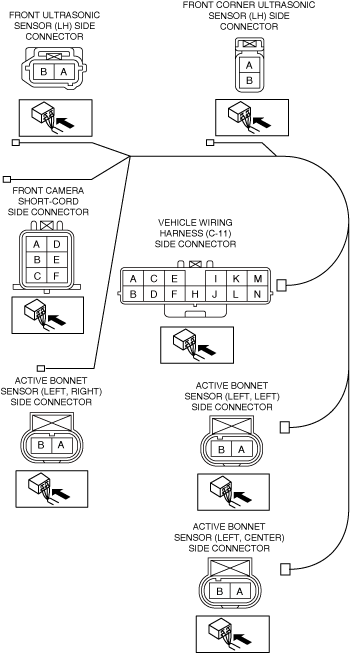

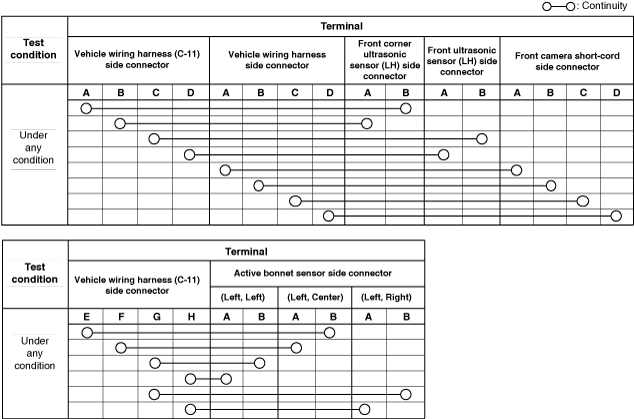

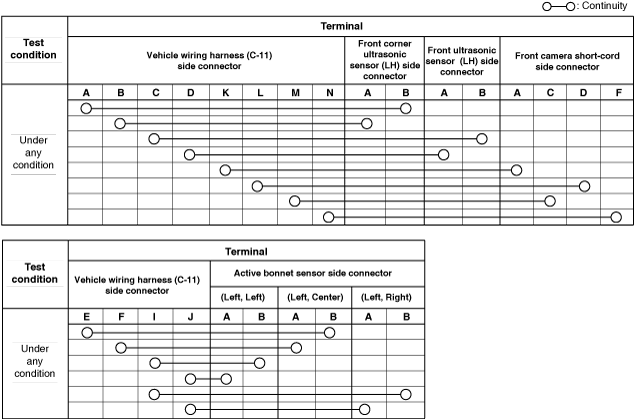

Front ultrasonic sensor short-cord (LH) (with 360° view monitor system)

ac8wzw00004843

ac8wzw00004842

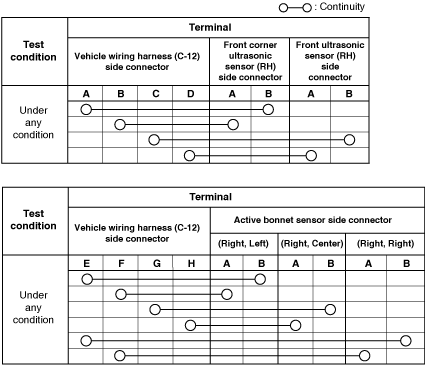

Front ultrasonic sensor short-cord (RH)

ac8wzw00004835

ac8wzw00004834

• If not as indicated in the table, replace the front ultrasonic sensor short-cord. (See FRONT ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)

Type-B
