i-stop WARNING LIGHT (AMBER) [SKYACTIV-G 2.5T]

id0140h0008700

Purpose, Function

• If the i-stop control inhibits the operation, the i-stop warning light (amber) flashes/illuminates to inform the driver that the i-stop control inhibits the operation.

Construction

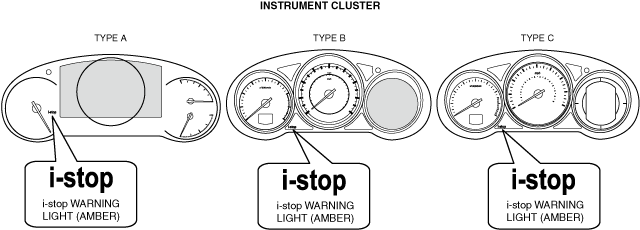

• The i-stop warning light (amber) is built into the instrument cluster.

am6zzn00005738

• For vehicles with center display, a warning message in the center display is displayed when the i-stop warning light (amber) is illuminated or flashes. For the message content and verification method, refer to the “CENTER DISPLAY”. (See CENTER DISPLAY.)

Operation

• The flashing/illumination conditions of the i-stop warning light (amber) are as follows:

i-stop warning light (amber) flashing condition

― Any of the following DTCs are stored:

PCM DTC

• For details on DTCs, refer to “ON-BOARD DIAGNOSTIC SYSTEM TEST MODE”. (See ON-BOARD DIAGNOSTIC SYSTEM [PCM (SKYACTIV-G 2.5T)].)

TCM DTC

• For details on DTCs, refer to “ON-BOARD DIAGNOSTIC SYSTEM MALFUNCTION DETECTION FUNCTION”. (See ON-BOARD DIAGNOSTIC SYSTEM MALFUNCTION DETECTION FUNCTION [TCM (GW6A-EL, GW6AX-EL)].)

DSC HU/CM DTC

• For details on DTCs, refer to “ON-BOARD DIAGNOSTIC SYSTEM”. (See ON-BOARD DIAGNOSTIC SYSTEM [DSC HU/CM].)

EPS control module DTC

• For details on DTCs, refer to “ON-BOARD DIAGNOSTIC SYSTEM”. (See ON-BOARD DIAGNOSTIC SYSTEM [ELECTRIC POWER STEERING (EPS)].)

DC-DC CONVERTER (i-ELOOP) DTC (with i-ELOOP)

• For details on DTCs, refer to the “ON-BOARD DIAGNOSTIC SYSTEM [i-ELOOP]” in the workshop manual.

i-stop warning light (amber) illumination condition

― Any one of the following conditions is met:

• Ignition switched ON (check of i-stop control system)

• i-stop OFF switch is on

• Engine stalls due to driver's operation while engine is stopped by i-stop control

• Communication error to PCM and instrument cluster

― Any of the following DTCs are stored:

PCM DTC

• For details on DTCs, refer to “ON-BOARD DIAGNOSTIC SYSTEM TEST MODE”. (See ON-BOARD DIAGNOSTIC SYSTEM [PCM (SKYACTIV-G 2.5T)].)

• The PCM sends an i-stop warning light (amber) flashing/illumination request to the instrument cluster via CAN communication.
