FRONT BODY CONTROL MODULE (FBCM)

id094000002500

Outline

• Located at the front of the vehicle, the front body control module (FBCM) performs numerous system controls for functions at the front of the vehicle.

Function

• The front body control module (FBCM) controls the system based on the input/output signals.

• The functions which are controlled are as follows:

Control table

Control	Content	Reference
Front combination light control	Each light illuminates or flashes in conjunction with the operation of the light switch, turn switch and hazard warning switch.	(See FRONT COMBINATION LIGHT.)
Horn control	Sound is harmonized between high and low pitch.	(See HORN.)
Rear window defogger system control	Warms the rear window glass and the outer mirror glass using heat filaments to defog the glass surface.	(See REAR WINDOW DEFOGGER/HEATED OUTER MIRROR/WINDSHIELD WIPER DE-ICER.)
Front fog light control	By shining light in a wider area in front of the vehicle than the light from the headlights, visibility during poor weather conditions, such as rain and fog, has been improved. In addition, the visibility of the vehicle from on-coming vehicles, pedestrians, has been improved.	(See FRONT FOG LIGHT.)
Windshield wiper system control	Equipped with continuous (low/high), auto-stop, one-touch wiper, intermittent wiper, and synchronized washer and wiper operation.	(See WINDSHIELD WIPER/WASHER SYSTEM.)
Coming home light	The front body control module (FBCM) performs control of the coming home light based on the signals from the light switch and the door light switch.	(See COMING HOME LIGHT.)
Leaving home light	The front body control module (FBCM) performs control of the leaving home light based on the signals from the light switch and the remote transmitter.	(See LEAVING HOME LIGHT.)
CAN (Controller Area Network)	Sends and receives signals between CAN system-related modules using CAN system.	(See MULTIPLEX COMMUNICATION SYSTEM.)
ON-BOARD DIAGNOSTIC SYSTEM	The front body control module (FBCM) is equipped with an on-board diagnosis function which records DTCs in the event of a malfunction.	(See ON-BOARD DIAGNOSTIC SYSTEM [FRONT BODY CONTROL MODULE (FBCM)].)

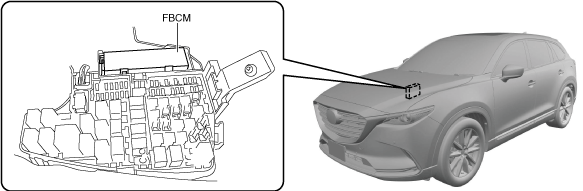

Structural view

ac9wzn00001648

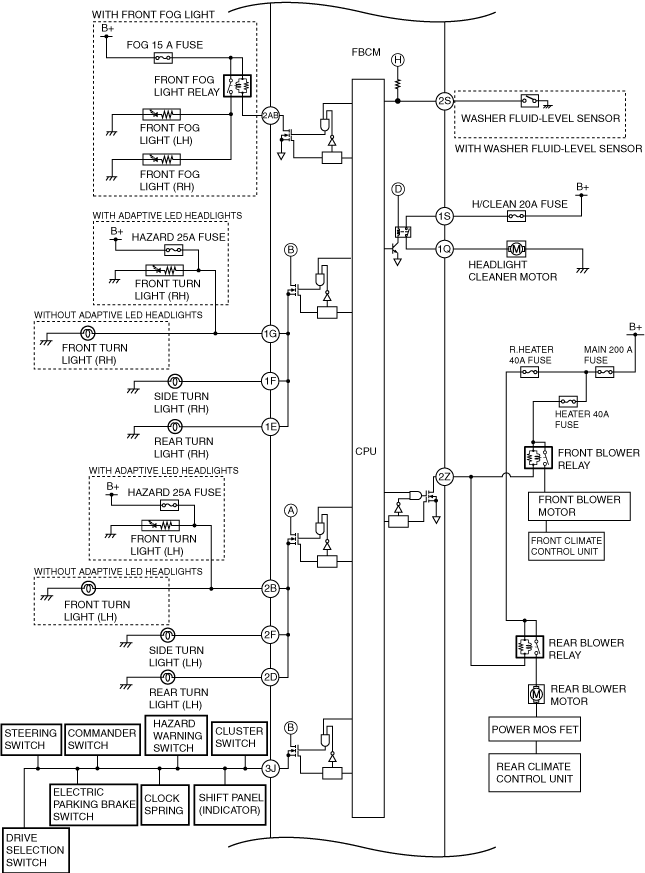

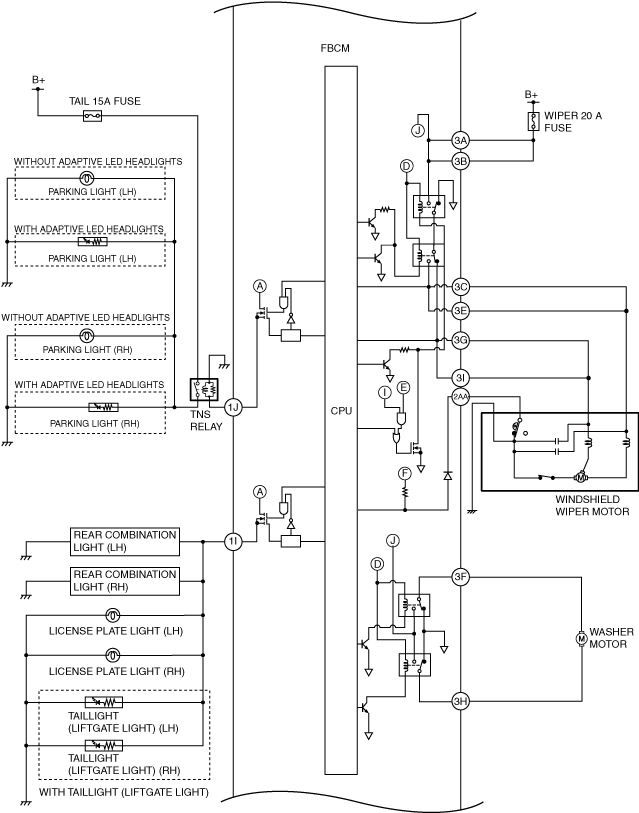

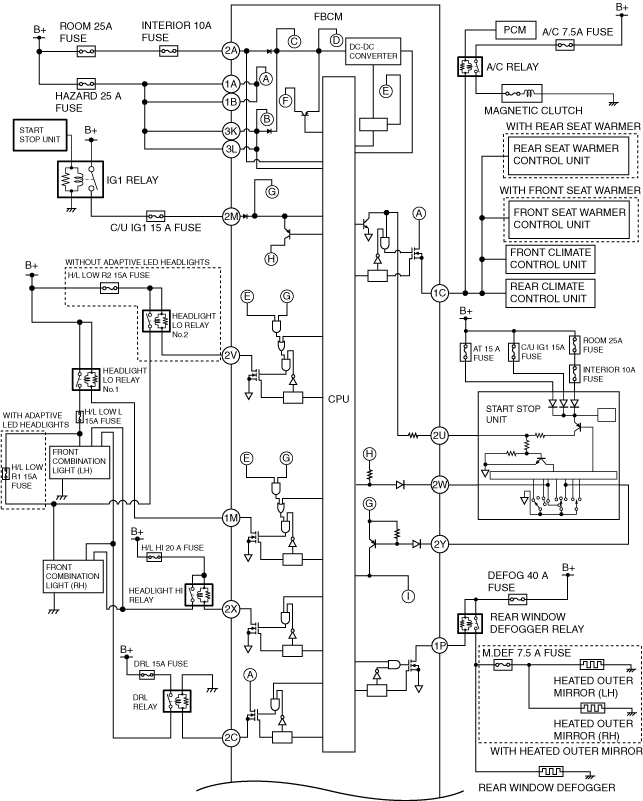

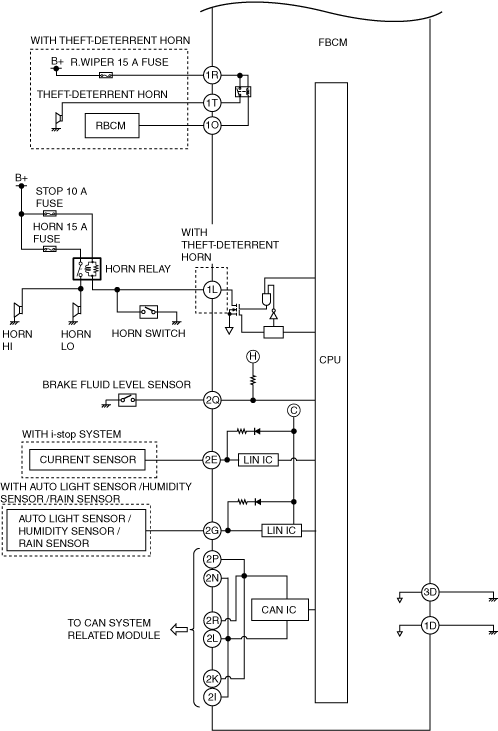

System wiring diagram

ac9wzn00001844

ac9wzn00001921

ac9wzn00001651

ac9wzn00001652

Fail-safe

Exterior lighting system

• If the CAN signal cannot be received normally, the front body control module (FBCM) performs the following controls:

― Light is illuminated: Continues to illuminate until the ignition is switched off.

― Light is turned off: Turns on/off according to the light switch operation. If the light switch is off, the TNS (Parking Ligths) is forced on. When the ignition is switched off, the light turns off.

Auto light system

• If there is a communication error in the rain sensor while the light is illuminated, the front body control module (FBCM) continues to illuminate the light until the ignition is switched off or the light switch is operated to the position other than AUTO.

Running light system

• Not applicable.

Turn light system

• If the CAN signal cannot be received normally, the front body control module (FBCM) controls the turn light system based on the signal last received. If the CAN signal cannot be received normally for 5 s or more, the front body control module (FBCM) stops the turn light system control.

Rear window defogger system

• Not applicable.

Horn control

• Not applicable.

Windshield wiper and washer system

• If the front body control module (FBCM) detects a malfunction in the internal CPU, it controls as follows:

― When the wiper and washer switch is in the LO or HI position: LO operation control is performed.

― When the wiper and washer switch is in the OFF position: Windshield wiper operation is stopped.

• If the front body control module (FBCM) cannot receive a windshield wiper switch position signal because of a malfunction in the start stop unit or a CAN communication error between the start stop unit, or if it detects an error in the windshield wiper switch position signal, it continues the control before detecting the malfunction. However, if the driver operates the wiper and washer switch, it controls as follows:

― When the front body control module (FBCM) detects LO/HI ON using the LO/HI detection function: The windshield wipers are operated at low speed.

― When the front body control module (FBCM) detects LO/HI OFF using the LO/HI detection function: The windshield wipers are stopped at the park position.

• If the windshield wiper switch position, which is monitored by the LO/HI detection function of the front body control module (FBCM), does not match the one sent from the start stop unit as a CAN signal, the windshield wipers are controlled according to the CAN signal for a certain period of time. After the certain period of time has elapsed, they are controlled as follows:

― When the front body control module (FBCM) detects LO/HI ON using the LO/HI detection function: The windshield wipers are operated at low speed.

― When the front body control module (FBCM) detects LO/HI OFF using the LO/HI detection function: The windshield wipers are stopped at the park position.

• If the front body control module (FBCM) detects a malfunction in the auto stop switch circuit while the windshield wipers are operating, it allows the windshield wipers to operate for a certain period of time and then stops the operation. However, if the driver operates the wiper and washer switch, or if the ignition is switched off and switched ON (engine off or on) again, it operates the windshield wipers again.

• If the front body control module (FBCM) cannot receive an INT volume signal because of a CAN communication error between the start stop unit or a malfunction in the start stop unit, it continues the operation at a certain intermittent timing.

• If the front body control module (FBCM) detects an error in the INT volume signal from the start stop unit, it continues the operation according to the INT volume signal before detecting the malfunction.

• If the front body control module (FBCM) cannot receive a windshield washer operation request signal because of a CAN communication error between the start stop unit or a malfunction in the start stop unit, it controls as follows:

― When the windshield washer is operated: The washer operation is continued for a certain period of time and then stopped.

― When the windshield washer is not operated: The washer is not operated.

• If the windshield washer is continuously operated for a long period (approx. 1 min. or more), the operation is stopped temporarily to prevent the windshield washer relay from overheating.

Auto wiper system

• If the front body control module (FBCM) cannot receive a CAN signal (vehicle speed signal) from the PCM normally, it continues the control using the vehicle speed signal before detecting the malfunction.

• If there is a malfunction in the rain sensor or a communication error between the rain sensor and front body control module (FBCM), and if the front body control module (FBCM) detects a signal error ten times in a series, the operation before the malfunction was detected is continued.

• If the rain sensor detects rainfall and then detects no change in the detected amount after the wipers have been operated approx. two times, the windshield is determined to be dirty and windshield wiper operation is stopped.

― If the windshield is dirty, set the wiper and washer switch to LO or HI position to operate the windshield wiper. Or, remove the dirt from the windshield, then operate the auto wiper.

• If the temperature sensor in the rain sensor detects approx. -10 °C {14 °F} or less when the ignition is switched ON (engine off or on), the windshield wipers do not operate even though it may be snowing.
