REAR BODY CONTROL MODULE (RBCM)

id094000002600


Outline

•  Positioned at the rear of the vehicle, the rear body control module (RBCM) performs numerous system controls for functions at the vehicle rear.

Function

•  The rear body control module (RBCM) controls the system based on the input/output signals.
•  The functions which are controlled are as follows:

Control table

Control

Content

Reference
Interior light control system control
The rear body control module (RBCM) changes the illumination condition and illumination level of the interior light (door position) according to whether the doors are opened/closed.
(See INTERIOR LIGHTING SYSTEM.)
Back-up light control
The back-up light illuminates in conjunction with the shift operation.
(See LIFTGATE LIGHT.)
Power door lock system control
A power door lock system has been adopted in which all doors and the liftgate are locked/unlocked when the driver's door is locked/unlocked using the driver's door lock knob, or the door key cylinder is operated.
(See POWER DOOR LOCK SYSTEM.)
Rear wiper system control
Equipped with continuous, auto-stop, intermittent wiper, and synchronized washer and wiper operation.
(See REAR WIPER/WASHER SYSTEM.)
Rear fog light control
The rear fog light illuminates in conjunction with the operating light switch and the rear fog light switch.
(See REAR FOG LIGHT.)
Liftgate opener system control
A liftgate opener system has been adopted in which theliftgate can be opened just by pressing the liftgate openerswitch.
(See LIFTGATE OPENER SYSTEM.)
CAN (Controller Area Network)
Sends and receives signals between CAN system-related modules using CAN system.
(See MULTIPLEX COMMUNICATION SYSTEM.)
ON-BOARD DIAGNOSTIC SYSTEM
The rear body control module (RBCM) is equipped with an on-board diagnosis function which records DTCs in the event of a malfunction.
(See ON-BOARD DIAGNOSTIC SYSTEM [REAR BODY CONTROL MODULE (RBCM)].)

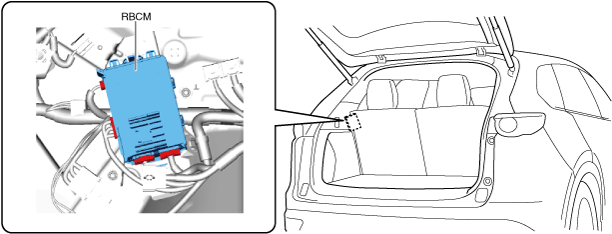

Structural view

ac9uun00002541

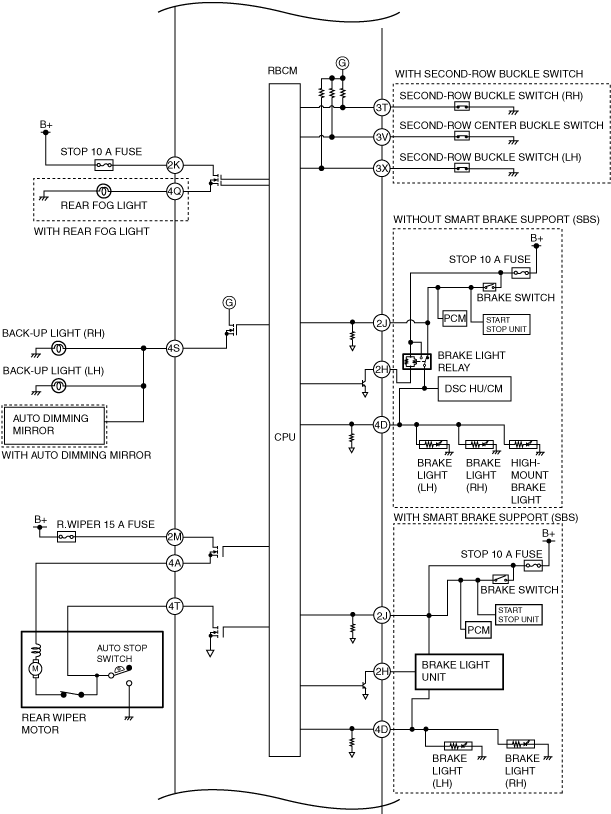

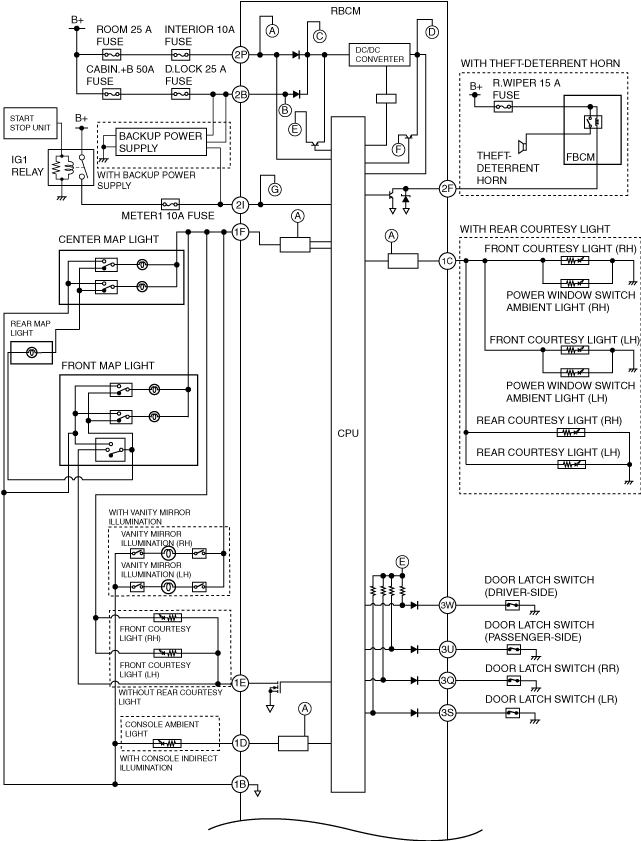

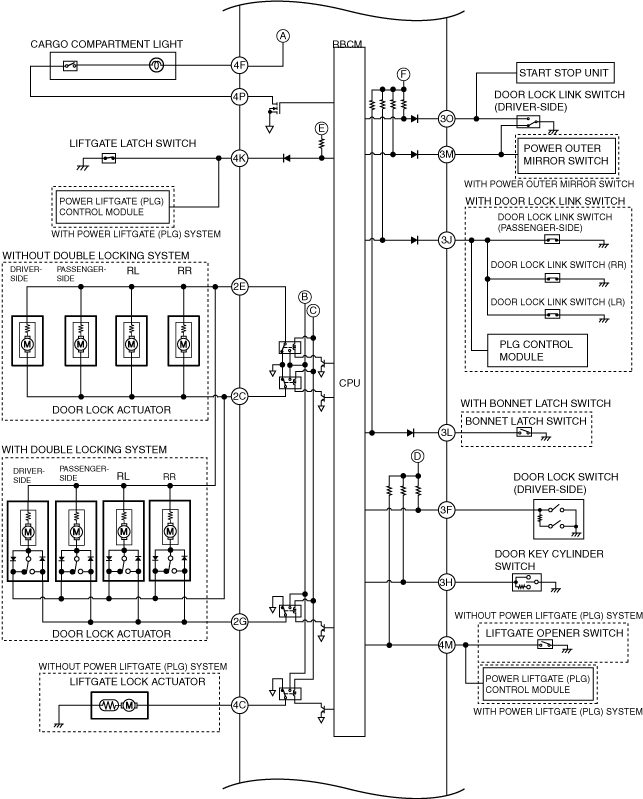

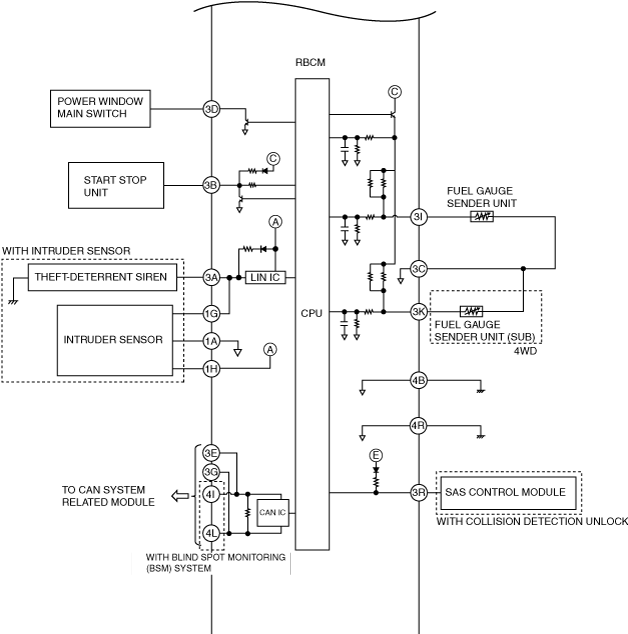

System wiring diagram

ac9wzn00001845
ac9wzn00001846
ac9wzn00001655
ac9wzn00001656

Fail-safe


Room light control system

•  If an error is detected in a combination of the door lock-link switch signals, the rear body control module (RBCM) controls the interior light based on the signal before the error occurred.
•  If the CAN signal cannot be received normally, the rear body control module (RBCM) controls the interior light based on the signal last received. If the CAN signal cannot be received normally for 5 s or more, the rear body control module (RBCM) stops the interior light control.


Back-up light control

•  Not applicable.


Power door lock system

•  Not applicable.


Rear wiper system

•  If the CAN signal cannot be received normally, the rear body control module (RBCM) controls the rear wiper based on the signal last received. If the CAN signal cannot be received normally for 5 s or more, the rear body control module (RBCM) stops the rear wiper control.


Theft-deterrent system

•  Not applicable.


Rear fog light control

•  Not applicable.
