1
|
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has FREEZE FRAME DATA been recorded?
|
Yes
|
Go to the next step.
|
|
No
|
Record FREEZE FRAME DATA on the repair order, then go to the next step.
|
|
2
|
VERIFY RELATED SERVICE INFORMATION AVAILABILITY
• Verify related Service Information availability.
• Is any related Service Information available?
|
Yes
|
Perform repair or diagnosis according to the available Service Information.
• If the vehicle is not repaired, go to the next step.
|
|
No
|
Go to the next step.
|
|
3
|

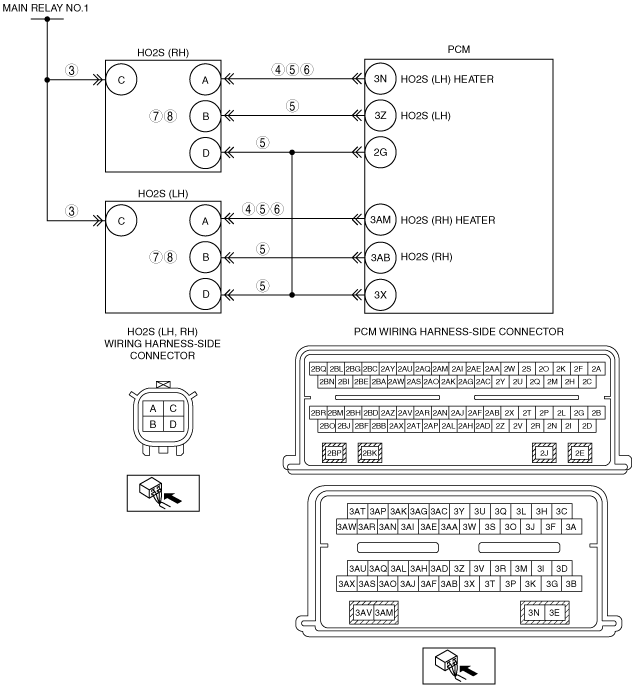

INSPECT FOR POWER SUPPLY IN WIRING HARNESS
• Turn the ignition switch off.
• Disconnect the suspect HO2S connector.
• Turn the ignition switch to the ON position (engine off).
• Measure the voltage between the suspect HO2S wiring harness-side connector terminal C and ground.
• Is the voltage more than 10 V?
|
Yes
|
Go to the next step.
|
|
No
|
Inspect the ENG BAR fuse.
• If the fuse deterioration, replace the fuse.
• If the fuse melts, repair for short to ground and replace the fuse.
• If the fuse is normal, repair the open circuit.
Go to Step 9.
|
|
4
|
INSPECT HO2S HEATER FOR SHORT TO GROUND
• Suspect HO2S connector is disconnected.
• Turn the ignition switch off.
• Disconnect the PCM connector.
• Measure the resistance between suspect HO2S wiring harness-side connector terminal A and body ground.
• Is the resistance more than 10 kilohms?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace suspected part, go to Step 9
|
|
5
|
INSPECT HO2S HEATER FOR SHORT IN WIRING HARNESS
• Suspect HO2S and PCM connectors are disconnected.
• Measure the resistance between the following terminals:
-
― HO2S terminal A (wiring harness-side) and HO2S terminal C (wiring harness-side)
― HO2S terminal A (wiring harness-side) and HO2S terminal D (wiring harness-side)
― HO2S terminal A (wiring harness-side) and HO2S terminal B (wiring harness-side)
• Are the resistances more than 10 kilohms?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace suspected part, go to Step 9
|
|
6
|
INSPECT HO2S HEATER CIRCUIT FOR OPEN CIRCUIT IN WIRING HARNESS
• Suspect HO2S and PCM connectors are disconnected.
• Measure the resistance between the following terminals (wiring harness-side):
-
― P0054:00:
-
• HO2S (RH) terminal A—PCM terminal 3N
― P0060:00:
-
• HO2S (LH) terminal A—PCM terminal 3AM
• Is the resistance less than 5.0 ohms?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace suspected part, go to Step 9.
|
|
7
|
INSPECT INTERNAL RESISTANCE OF HO2S HEATER
• Suspect HO2S and PCM connectors are disconnected.
• Measure the resistance between the suspect HO2S terminal A and C on the component side.
• Is the resistance between 2—50 ohms?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the suspect HO2S.
Go to Step 9.
|
|
8
|
INSPECT HO2S CASE FOR SHORT TO POWER SUPPLY, HTR, AND SIGNRTN
• Suspect HO2S and PCM connectors are disconnected.
• Measure the resistance between the suspect HO2S terminal A and D on the component side.
• Measure the resistance between the suspect HO2S terminal A and body ground.
• Is the resistance more than 10 kilohms?
|
Yes
|
Go to the next step.
(The system is operating correctly at this time. The concern may have been caused by a loose or corroded connector.)
|
|
No
|
Replace the suspect HO2S.
Go to the next step.
|
|
9
|
VERIFY TROUBLESHOOTING OF DTC P0054:00, P0060:00 HAVE BEEN COMPLETED
• Verify that all disconnected connectors reconnected.
• Clear the DTC from the PCM memory using the M-MDS.
• Start the engine and run it at idle.
• Perform the KOEO or KOER self-test.
• Is the PENDING CODE for this DTC present?
|
Yes
|
Repeat the inspection from Step 1.
• If the malfunction recurs, replace the PCM.
Go to the next step.
|
|
No
|
Go to the next step.
|
|
10
|
VERIFY AFTER REPAIR PROCEDURE
• Perform the “AFTER REPAIR PROCEDURE”.
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
|
|
No
|
Troubleshooting completed.
|
