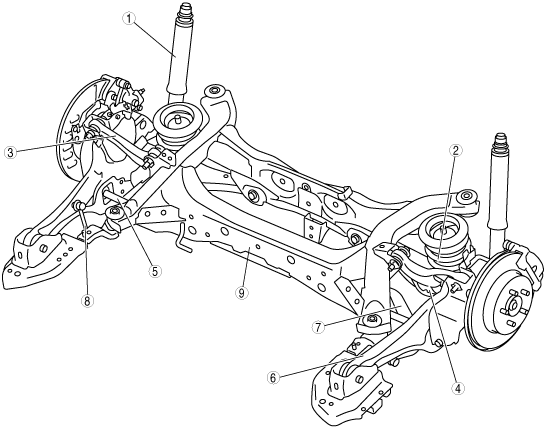

REAR SUSPENSION LOCATION INDEX [2WD]

id0214008004a1

ac9wzw00001408

1	Rear shock absorber (See REAR SHOCK ABSORBER REMOVAL/INSTALLATION.) (See REAR SHOCK ABSORBER INSPECTION.) (See REAR SHOCK ABSORBER DISPOSAL.)
2	Rear coil spring (See REAR COIL SPRING REMOVAL/INSTALLATION.)
3	Rear upper arm (See REAR UPPER ARM REMOVAL/INSTALLATION [2WD].)
4	Rear lower arm (See REAR LOWER ARM REMOVAL/INSTALLATION.)
5	Rear lateral link (See REAR LATERAL LINK REMOVAL/INSTALLATION.)
6	Rear Trailing link (See REAR TRAILING LINK REMOVAL/INSTALLATION [2WD].)
7	Rear stabilizer (See REAR STABILIZER REMOVAL/INSTALLATION [2WD].)
8	Rear Stabilizer control link (See REAR STABILIZER CONTROL LINK INSPECTION.)
9	Rear crossmember (See REAR CROSSMEMBER REMOVAL/INSTALLATION [2WD].)
