CONTROL VALVE BODY REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL]

id051723801800

On-Vehicle Removal

Warning

•  Using compressed air can cause dirt and other particles to fly out, causing injury to the eyes. Wear protective eyeglasses whenever using compressed air.

Caution

•  Clean the transaxle exterior throughout with a steam cleaner or cleaning solvents before removal.

•  If any old sealant gets into the transaxle during installation of the control valve body cover, trouble may occur in the transaxle case and control valve body cover. Clean with cleaning fluid.

1.  Disconnect the negative battery cable.

2.  Remove the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-3.7].)

3.  Drain the ATF. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [AW6A-EL, AW6AX-EL].)

4.  Remove the oil cooler. (See OIL COOLER REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)

ac9uuw00001666

5.  Remove the oil pipe. (See OIL COOLER REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)

6.  Remove the control valve body cover installation bolt.

ac9uuw00001987

Caution

•  Do not damage the fitting surface of the transaxle case and the control valve body cover.

•  Do not deform the control valve body cover.

7.  Using a plastic hammer, tap the control valve body cover to remove it.

ac9uuw00001988

Caution

•  Be careful not to damage the solenoid valves and connectors.

•  Do not pull the wiring harnesses when removing the connector.

Note

•  Disconnect the solenoid connector according to the following procedure:

1.  Insert a precision screwdriver from the backside into the connector as shown in the figure.

ac9uuw00001989

2.  Pry the screwdriver in the direction of the arrow and disconnect the connector.

ac9uuw00001990

Caution

•  Do not damage the solenoid valves and connectors with the screwdriver.

•  When disconnecting connectors, grasp the connectors, not the harnesses. Otherwise, the harnesses may be pulled out of the connector causing poor contact.

8.  Disconnect the solenoid connectors, VSS connector and the input/turbine speed sensor connector.

ac9uuw00001991

9.  Disconnect the coupler component from the clamp.

10.  Remove the lock plate, and pull out the TFT sensor from the control valve body.

ac9uuw00001992

11.  Remove the O-ring from the TFT sensor.

Note

•  Be sure to secure the coupler component with tape so that it will not interfere with the control valve body component.

12.  Fix the coupler component with tape to the transaxle case as shown in the figure.

ac9uuw00001993

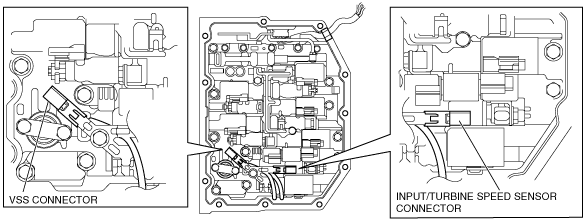

13.  Remove the VSS connector and input/turbine speed sensor connector from the solenoid clamp.

ac9uuw00001994

Note

•  Be sure to secure the VSS and input/turbine speed sensor with tape so that they will not interfere with the control valve body component.

14.  Fix the VSS wiring harness and input/turbine speed sensor wiring harness with tape to the transaxle case as shown in the figure.

ac9uuw00001995

15.  Remove the suction cover and the gasket.

ac9uuw00001996

Caution

•  Evenly loosen the bolts a little at a time in the order shown in the figure.

16.  Remove the control valve body installation bolts.

ac9uuw00001997

Caution

•  Do not drop the control valve body component.

17.  Disconnect the manual valve link and remove the control valve body component.

ac9uuw00001998

On-Vehicle Installation

Caution

•  When installing the control valve body component, do not put the coupler component in the open space of the separate plate in the control valve body component.

•  Do not pinch the coupler component between the separate plate and the control valve body component.

1.  Connect the manual valve link and install the control valve body component.

ac9uuw00001999

2.  Temporarily install the control valve body component with the bolts.

ac9uuw00002000

Note

•  Aligning the bolt holes, temporarily tighten the bolt by hand.

3.  Temporarily install the suction cover and a new gasket with the bolts.

ac9uuw00001996

4.  Tighten the bolts in the order shown in the figure.

ac9uuw00002001

5.  Install the connector of the VSS and input/turbine speed sensor to the solenoid clamp.

ac9uuw00001994

Caution

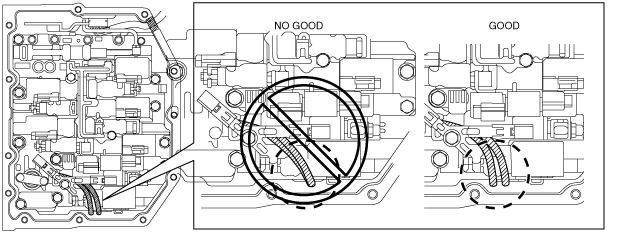

•  If the control valve body cover is installed with the wiring harnesses overlapped, the wiring harnesses may be pinched between the cover and valve body causing the wiring harnesses to be damaged. Therefore, verify that the wiring harnesses are not overlapped when installing the control valve body cover.

ac9uuw00002002

6.  Apply ATF to a new O-ring and install it on the TFT sensor.

7.  Install the TFT sensor with the lock plate and a bolt to the control valve body component as shown in the figure.

ac9uuw00002003

8.  Connect the solenoid connectors, VSS connector and the input/turbine speed sensor connector.

9.  Connect the coupler component to the clamps.

ac9uuw00001991

Note

•  Completely remove sealant and oil with white gasoline or similar.

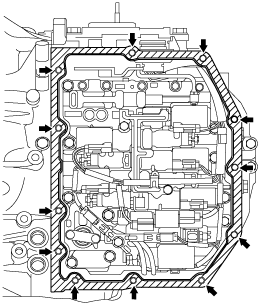

10.  Clean sealant and oil off the contact surface of the transaxle case with the control valve body cover and the bolt holes.

ac9uuw00002004

Note

•  Completely remove oil with white gasoline or similar.

11.  Clean oil off the contact surface of the new control valve body cover with the transaxle case.

12.  Apply sealant to the new control valve body cover as shown in the figure.

ac9uuw00002005

Caution

•  Be careful that the coupler component will not become caught between the control valve body cover and transaxle case.

13.  Install the new control valve body cover with new seal bolts before the applied sealant starts to harden.

ac9uuw00001987

14.  Install the oil pipe. (See OIL COOLER REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)

15.  Install the oil cooler. (See OIL COOLER REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)

16.  Install the TCM. (See TCM REMOVAL/INSTALLATION [AW6A-EL, AW6AX-EL].)

17.  Add ATF to the specified level. (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [AW6A-EL, AW6AX-EL].)

18.  Install the air cleaner component. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-3.7].)

19.  Connect the negative battery cable.

20.  Perform the mechanical system test. (See MECHANICAL SYSTEM TEST [AW6A-EL, AW6AX-EL].)
