CAR-NAVIGATION SYSTEM [CAR-NAVIGATION SYSTEM]

id0903e8801600

Troubleshooting Index

No.	Malfunction symptom
1	NO.1 CAR-NAVIGATION SYSTEM DOES NOT START OPERATION (DISPLAY CHANGES TO BACK.) [CAR-NAVIGATION SYSTEM]
2	NO.2 SYSTEM DOES NOT CONTROL AUDIO BY STEERING SWITCH [CAR-NAVIGATION SYSTEM]
3	NO.3 SYSTEM DOES NOT LOAD MAP DISC. [CAR-NAVIGATION SYSTEM]
4	NO.4 NO SOUND FROM AUDIO SYSTEM [CAR-NAVIGATION SYSTEM]
5	NO.5 VEHICLE POSITION DEVIATES FROM THE ROUTE MAP [CAR-NAVIGATION SYSTEM]
6	NO.6 NO VOICE NAVIGATION [CAR-NAVIGATION SYSTEM]
7	NO.7 DISPLAY SCREEN DOES NOT CHANGE TO THE NIGHT MODE (FRONT AND REAR COMBINATION LIGHTS OPERATE NORMALLY.) [CAR-NAVIGATION SYSTEM]
8	NO.8 DISPLAY DOES NOT CHANGE TO THE REAR MOUNT CAMERA IMAGE [CAR-NAVIGATION SYSTEM]
9	NO.9 SPEECH RECOGNITION DOES NOT START [CAR-NAVIGATION SYSTEM]

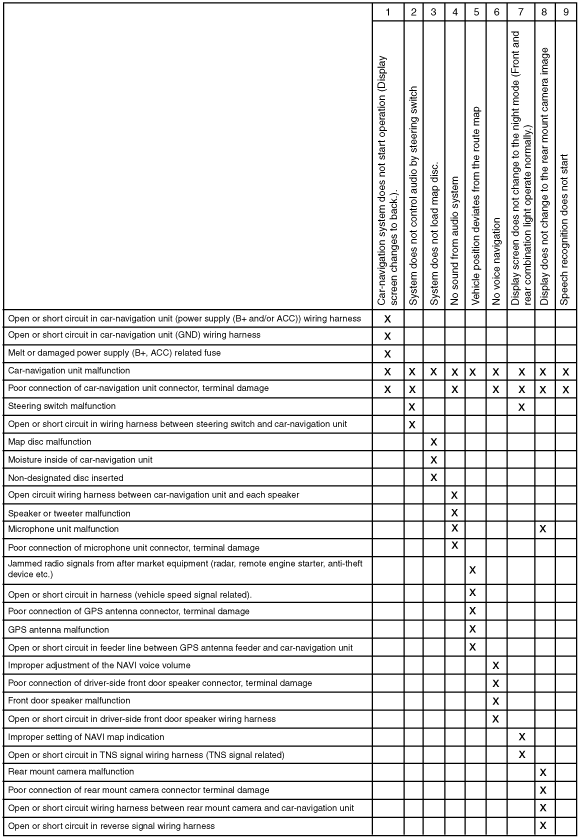

Quick diagnostic chart

ac9wzw00001868
